ISL54100 - TMDS Regenerators

Renesas

Datasheet Details

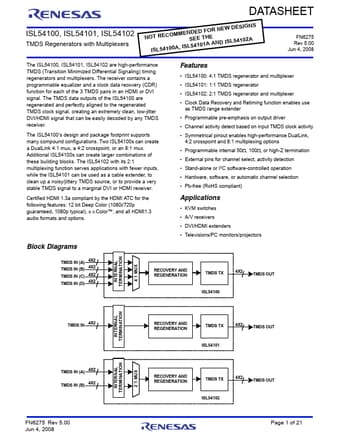

ISL54100, ISL54101, ISL54102 TMDS Regenerators with Multiplexers NOISTLR5E4C10O0MAM, IESNLS5DE4E1ED0T1FHAOEARNNDEWISLD5E4S10IG2NAS FN6275 Rev 5.00 Jun 4, 2008 The ISL54100, ISL54101, ISL54102 are high-performance TMDS (Transition Minimized Differential Signaling) timing regenerators and multiplexers. The receiver contains a programmable equalizer and a clock data recovery (CDR) function for each of the 3 TMDS pairs in an HDMI or DVI signal. The TMDS data outputs of the ISL54100 are regenerat.
