ISL43210 Datasheet - Renesas

ISL43210 Single SPDT Analog Switch

DATASHEET ISL43210 Low-Voltage, Single Supply, Single SPDT Analog Switch FN6563 Rev 2.00 Oct 30, 2007 The Intersil ISL43210 device is a precision, bidirectional, single SPDT analog switch designed to operate from a single +2.7V to +12V supply. Targeted applications include battery powered equipment that benefit from the devices’ low power consumption (5µW), low leakage currents (3nA max), and fast switching speeds (tON = 28ns, tOFF = 20ns). Cell phones, for example, often face ASIC functional.

ISL43210 Features

* AT A GLANCE ISL43210 SW 1/SW 2 SPDT or 2x1

ISL43210 Datasheet (612.28 KB)

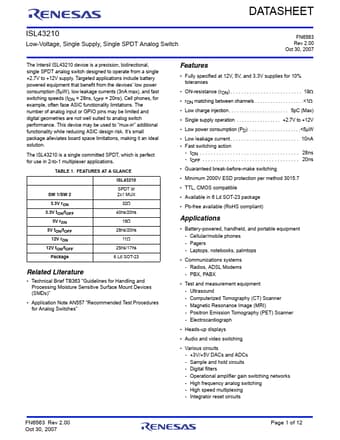

Preview of ISL43210 PDF
ISL43210 Datasheet Preview Page 2 ISL43210 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL43210

Manufacturer:

Renesas ↗

File Size:

612.28 KB

Description:

Single spdt analog switch.
