ISL3281E, ISL3280E - RS-485/RS-422 Receivers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL3281E, ISL3280E. Please refer to the document for exact specifications by model.

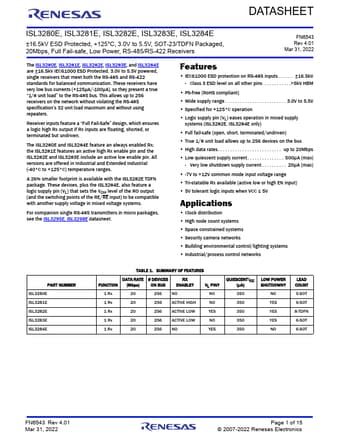

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number ISL3281E, ISL3280E
Manufacturer Renesas
File Size 0.97 MB
Description RS-485/RS-422 Receivers
Datasheet download datasheet ISL3280E-Renesas.pdf
Note This datasheet PDF includes multiple part numbers: ISL3281E, ISL3280E.
Please refer to the document for exact specifications by model.

ISL3281E Product details

Description

PIN NAME FUNCTION RO Receiver output: If A - B  -50mV, RO is high; If A - B  -200mV, RO is low; RO = High if A and B are unconnected (floating) or shorted.RE, RE Receiver output enable.RO is enabled when RE is high, or RE is low; RO is high impedance when RE is low, or RE is high.If the Rx enable function is not used, connect RE directly to GND, or connect RE through a 1kΩ, or greater, resistor to VCC.RE is internally pulled high, and RE is internally pulled low.GND Ground connect
