ISL28535, ISL28533 - Programmable Gain Instrumentation Amplifiers

ISL28535 Description

DATASHEET ISL28533, ISL28534, ISL28535, ISL28633, ISL28634, ISL28635 5V, Rail-to-Rail I/O, Zero-Drift, Programmable Gain Instrumentation Amplifiers .

ISL28535 Features

* Ultra high precision front-end amplifier
* Zero-drift instrumentation amplifier
* Pin selectable 9 gain settings: G = 1 to 1,000
* Rail-to-rail input/output
* Single-ended output (ISL28533, ISL28534, ISL28535)
* Differential output (ISL28633, ISL2863

ISL28535 Applications

* over the wide industrial temperature range. These instrumentation amplifiers are designed with a unique 2-bit, 3-state logic interface that allows up to 9 selectable gain settings. The ISL2853x single-ended output includes an additional uncommitted zero-drift amplifier, useful to buffer the REF inpu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL28535, ISL28533. Please refer to the document for exact specifications by model.

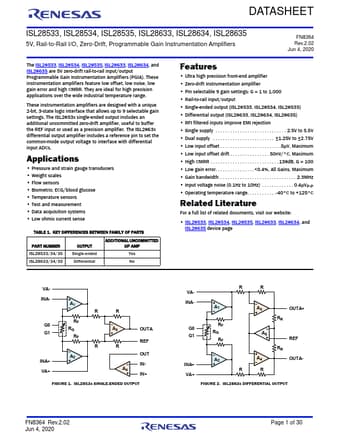

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL28535, ISL28533
Manufacturer
Renesas ↗
File Size
2.22 MB
Datasheet
ISL28533-Renesas.pdf
Description
Programmable Gain Instrumentation Amplifiers
Note
This datasheet PDF includes multiple part numbers: ISL28535, ISL28533.
Please refer to the document for exact specifications by model.
