ISL22102 - Dual Audio Logarithmic Potentiometer

ISL22102 Description

DATASHEET ISL22102 32 Tap, Push-Button, Dual Audio Logarithmic Potentiometer with Buffer Amplifiers and Audio Detection FN6788 Rev 2.00 September 21.

ISL22102 Applications

* Each potentiometer is implemented using 31 polysilicon resistors in a logarithmic array. Between each of the resistors are tap points connected to the wiper terminal through switches. When powered up, the wipers are reset to the -20dB position. In addition to the ISL22102’s low noise design, the

📥 Download Datasheet

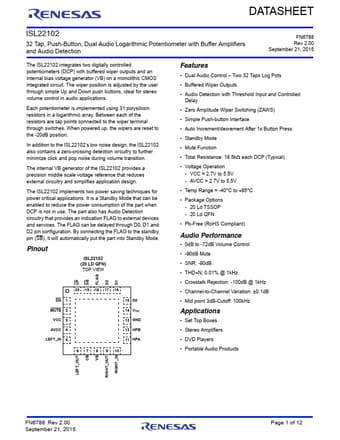

Preview of ISL22102 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL22102
Manufacturer
Renesas ↗
File Size
537.92 KB
Datasheet
ISL22102-Renesas.pdf
Description
Dual Audio Logarithmic Potentiometer
