IDTQS32XL384 Datasheet - Renesas

IDTQS32XL384 HIGH-SPEED CMOS 20-BIT BUS SWITCH

The QS32XL384 provides a set of twenty high-speed CMOS TTLcompatible bus switches. The low ON resistance of the QS32XL384 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The Bus Enable (BE) signals turn the switches on.

IDTQS32XL384 Features

* Enhanced N channel FET with no inherent diode to VCC

* 5Ω bidirectional switches connect inputs to outputs

* Zero propagation delay, zero ground bounce

* Undershoot Clamp Diodes on all switch and control Inputs

* Four enables control five bits each

IDTQS32XL384 Datasheet (291.60 KB)

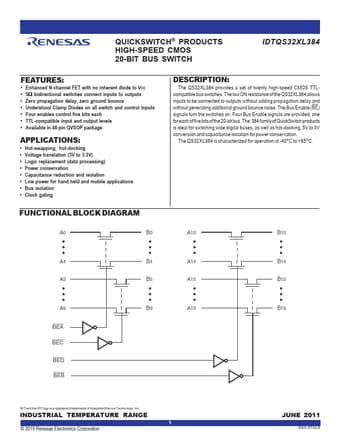

Preview of IDTQS32XL384 PDF
