IDT74FCT574AT - FAST CMOS OCTAL D REGISTERS

Download the IDT74FCT574AT datasheet PDF. This datasheet also covers the IDT74FCT574T variant, as both devices belong to the same fast cmos octal d registers family and are provided as variant models within a single manufacturer datasheet.

Description

The FCT574T is an 8-bit register built using an advanced dual metal CMOS technology.

These registers consist of eight D-type flip-flops with a buffered common clock and buffered 3-state output control.

When the output enable (OE) input is low, the eight outputs are enabled.

Features

  • Std. , A, and C grades.
  • Low input and output leakage ≤1µA (max. ).
  • CMOS power levels.
  • True TTL input and output compatibility:.
  • VOH = 3.3V (typ. ).
  • VOL = 0.3V (typ. ).
  • High Drive outputs (-15mA IOH, 48mA IOL).
  • Meets or exceeds JEDEC standard 18 specifications.
  • Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked).
  • Power off disable outputs permit "live insertion".
  • Available.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IDT74FCT574T-Renesas.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IDT74FCT574AT FAST CMOS OCTAL D REGISTERS IDT
IDT74FCT574A FAST CMOS OCTAL D REGISTERS IDT
IDT74FCT574 FAST CMOS OCTAL D REGISTERS Integrated Device Technology
IDT74FCT574C FAST CMOS OCTAL D REGISTERS IDT
IDT74FCT574CT FAST CMOS OCTAL D REGISTERS IDT

Other Datasheets by Renesas

Part Number Description
IDT74FCT574CT FAST CMOS OCTAL D REGISTERS
IDT74FCT574T FAST CMOS OCTAL D REGISTERS
IDT74FCT573AT FAST CMOS OCTAL TRANSPARENT LATCH
IDT74FCT573CT FAST CMOS OCTAL TRANSPARENT LATCH
IDT74FCT573T FAST CMOS OCTAL TRANSPARENT LATCH

Full PDF Text Transcription

Click to expand full text

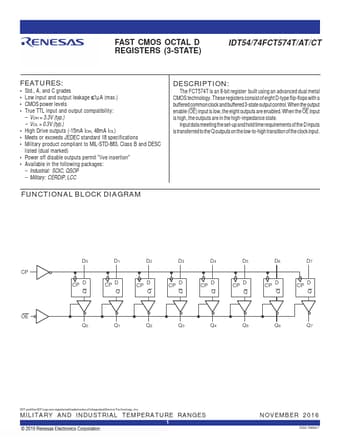

IDT54/74FCT574T/AT/CT FAST CMOS OCTAL D REGISTERS (3-STATE) MILITARY AND INDUSTRIAL TEMPERATURE RANGES FAST CMOS OCTAL D REGISTERS (3-STATE) IDT54/74FCT574T/AT/CT FEATURES: • Std., A, and C grades • Low input and output leakage ≤1µA (max.) • CMOS power levels • True TTL input and output compatibility: – VOH = 3.3V (typ.) – VOL = 0.3V (typ.) • High Drive outputs (-15mA IOH, 48mA IOL) • Meets or exceeds JEDEC standard 18 specifications • Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked) • Power off disable outputs permit "live insertion" • Available in the following packages: – Industrial: SOIC, QSOP – Military: CERDIP, LCC DESCRIPTION: The FCT574T is an 8-bit register built using an advanced dual metal CMOS technology.
