IDT7132SA - HIGH SPEED 2K x 8 DUAL PORT STATIC RAM

Description

The IDT7132/IDT7142 are high-speed 2K x 8 Dual-Port Static RAMs.

The IDT7132 is designed to be used as a stand-alone 8-bit Dual-Port RAM or as a “MASTER” Dual-Port RAM together with the IDT7142 “SLAVE” Dual-Port in 16-bit-or-more word width systems.

Features

  • High-speed access.
  • Commercial: 20/35/55/100ns (max. ).
  • Industrial: 25/55ns (max. ).
  • Military: 25/35/55/100ns (max. ).
  • Low-power operation.
  • IDT7132/42SA Active: 325mW (typ. ) Standby: 5mW (typ. ).
  • IDT7132/42LA Active: 325mW (typ. ) Standby: 1mW (typ. ) Functional Block Diagram OEL CEL R/WL.
  • MASTER IDT7132 easily expands data bus width to 16-or-more bits using SLAVE IDT7142.
  • On-chip port arbitration logic (IDT7132 only).
  • BUSY output.

📥 Download Datasheet

📁 Similar Datasheet

  • IDT7132SA - HIGH-SPEED 2K x 8 DUAL-PORT STATIC RAM (Integrated Device Technology)
  • IDT71321LA - HIGH-SPEED 2K x 8 DUAL-PORT STATIC RAM (IDT)
  • IDT71321SA - HIGH-SPEED 2K x 8 DUAL-PORT STATIC RAM (IDT)
  • IDT71322L - CMOS Dual-Port RAM 16K (IDT)
  • IDT71322S - CMOS Dual-Port RAM 16K (IDT)
  • IDT7132LA - HIGH-SPEED 2K x 8 DUAL-PORT STATIC RAM (Integrated Device Technology)
  • IDT7130LA - HIGH-SPEED 1K x 8 DUAL-PORT STATIC RAM (Integrated Device Technology)
  • IDT7130SA - HIGH-SPEED 1K x 8 DUAL-PORT STATIC RAM (Integrated Device Technology)
  • IDT7133LA - HIGH-SPEED 2K x 16 CMOS DUAL-PORT STATIC RAMS (Integrated Device Technology)
  • IDT7133SA - HIGH-SPEED 2K x 16 CMOS DUAL-PORT STATIC RAMS (Integrated Device Technology)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text

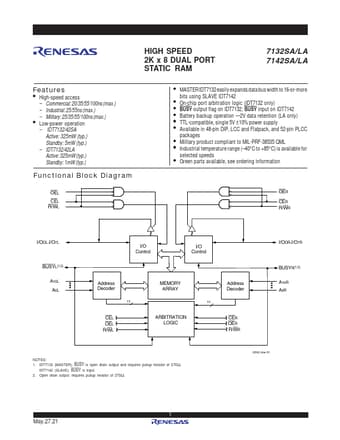

HIGH SPEED 2K x 8 DUAL PORT STATIC RAM 7132SA/LA 7142SA/LA Features ◆ High-speed access – Commercial: 20/35/55/100ns (max.) – Industrial: 25/55ns (max.) – Military: 25/35/55/100ns (max.) ◆ Low-power operation – IDT7132/42SA Active: 325mW (typ.) Standby: 5mW (typ.) – IDT7132/42LA Active: 325mW (typ.) Standby: 1mW (typ.
