ICS726A 12 TO 36 MHZ 6TSOT VCXO

ICS726A Description

12 TO 36 MHZ 6TSOT VCXO DATASHEET ICS726A .
Used in conjunction with an external pullable quartz crystal, this monolithic integrated circuit replaces more costly hybrid (canned) VCXO devices.

ICS726A Features

* Uses an inexpensive 12 to 36 MHz external crystal
* Output frequency range of 12 to 36 MHz
* On-chip VCXO with guaranteed pull range of ±115 ppm minimum
* VCXO tuning voltage 0 to 3.3 V
* Packaged in 6-pin TSOT
* Pb (lead) free package Block Diagram

ICS726A Applications

* such as ADSL modems, set-top box receivers, and telecom systems. The frequency of the on-chip VCXO is adjusted by an external control voltage to the VIN pin. Since VIN is a high impedance input, it can be driven directly from an PWM RC integrator circuit. Frequency output increases with VIN voltage

📥 Download Datasheet

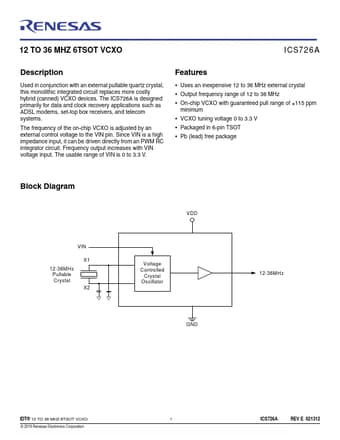

Preview of ICS726A PDF
