ICS252 - FIELD PROGRAMMABLE DUAL OUTPUT SS VERSACLOCK SYNTHESIZER

Description

The ICS252 is a low cost, dual-output, field programmable clock synthesizer.

The ICS252 can generate two output frequencies from 314 kHz to 200 MHz using up to two independently configurable PLLs.

The outputs may employ Spread Spectrum techniques to reduce system electro-magnetic interference (EMI).

Features

  • include 2 selectable configuration registers. The device employs Phase-Locked Loop (PLL) techniques to run from a standard fundamental mode, inexpensive crystal, or clock. It can replace multiple crystals and oscillators, saving board space and cost. The device also has a power-down feature that tri-states the clock outputs and turns off the PLLs when the PDTS pin is taken low. The ICS252 is also available in factory programmed custom versions for high-volume.

📥 Download Datasheet

Datasheet Details

Part number ICS252
Manufacturer Renesas
File Size 189.92 KB
Description FIELD PROGRAMMABLE DUAL OUTPUT SS VERSACLOCK SYNTHESIZER
Datasheet download datasheet ICS252 Datasheet

📁 Similar Datasheet

  • ICS252 - Field Programmable Dual Output SS VersaClock Synthesizer (Integrated Circuit Systems)
  • ICS2509C - 3.3V Phase-Lock Loop Clock Driver (Integrated Circuit Systems)
  • ICS2510C - 3.3V Phase-Lock Loop Clock Driver (Integrated Circuit Systems)
  • ICS2572 - User-Programmable Dual High-Performance Clock Generator (Integrated Circuit Systems)
  • ICS2595 - User-Programmable Dual High-Performance Clock Generator (Integrated Circuit Systems)
  • ICS2002 - Wavedec Digital Audio Codec (Integrated Circuit Systems)
  • ICS2008B - SMPTE Time Code Receiver/Generator (Integrated Circuit Systems)
  • ICS22002I-01 - CRYSTAL-TOLVHSTL FREQUENCY SYNTHESIZER (IDT)
  • ICS2305 - 3.3 VOLT ZERO DELAY / LOW SKEW BUFFER (Integrated Circuit Systems)
  • ICS2309 - 3.3 VOLT ZERO DELAY / LOW SKEW BUFFER (Integrated Circuit Systems)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text

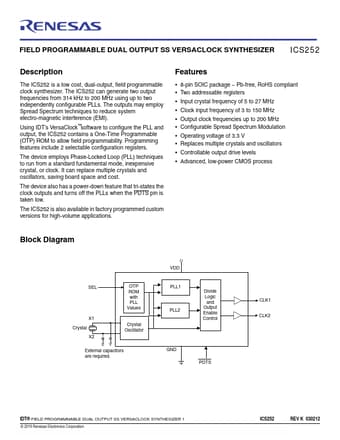

DATASHEET FIELD PROGRAMMABLE DUAL OUTPUT SS VERSACLOCK SYNTHESIZER ICS252 Description The ICS252 is a low cost, dual-output, field programmable clock synthesizer. The ICS252 can generate two output frequencies from 314 kHz to 200 MHz using up to two independently configurable PLLs. The outputs may employ Spread Spectrum techniques to reduce system electro-magnetic interference (EMI). Using IDT’s VersaClock™software to configure the PLL and output, the ICS252 contains a One-Time Programmable (OTP) ROM to allow field programmability. Programming features include 2 selectable configuration registers. The device employs Phase-Locked Loop (PLL) techniques to run from a standard fundamental mode, inexpensive crystal, or clock.
