ICL7107 - A/D Converters

Download the ICL7107 datasheet PDF. This datasheet also covers the ICL7106 variant, as both devices belong to the same a/d converters family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • auto zero to less than 10µV, zero drift of less than 1µV/°C, input bias current of 10pA (max) and rollover error of less than one count. True differential inputs and reference are useful in all systems, but give the designer an uncommon advantage when measuring load cells, strain gauges and other bridge type transducers. Finally, the true economy of single power supply operation (ICL7106), enables a high performance panel meter to.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ICL7106-Renesas.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ICL7107
Manufacturer Renesas
File Size 666.78 KB
Description A/D Converters
Datasheet download datasheet ICL7107 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ICL7107 (ICL7106 / ICL7107) True Differential input and Reference Estek Electronics
ICL7107 Digit A/D Converter Maxim
ICL7101 (ICL7101 / ICL8052) 3 1/2 Digital A/D Intersil Corporation
ICL7103 (ICL7103 / ICL8052 / ICL8068) Precision 4 1/2 Digit A/D Converter Intersil
ICL7104 14-Bit/16-Bit/ Microprocessor- Compatible/ 2-Chip/ A/D Converter Intersil

Other Datasheets by Renesas

Part Number Description
ICL7107S A/D Converters
ICL7106 A/D Converters
ICL7135 A/D Converter
ICL7135CPI A/D Converter
ICL7136 Low Power Display / A/D Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

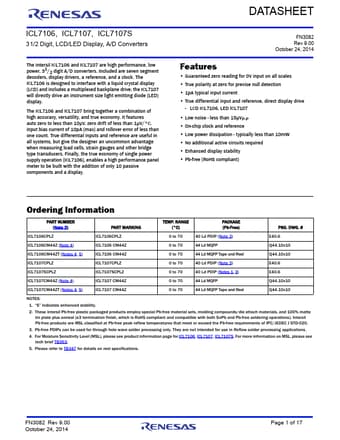

ICL7106, ICL7107, ICL7107S 31/2 Digit, LCD/LED Display, A/D Converters The Intersil ICL7106 and ICL7107 are high performance, low power, 31/2 digit A/D converters. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7106 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive; the ICL7107 will directly drive an instrument size light emitting diode (LED) display. The ICL7106 and ICL7107 bring together a combination of high accuracy, versatility, and true economy. It features auto zero to less than 10µV, zero drift of less than 1µV/°C, input bias current of 10pA (max) and rollover error of less than one count.
