HN58X2404SFPIAG, HN58X2402SFPIAG EEPROM

Renesas

HN58X2404SFPIAG Description

HN58X2402SFPIAG HN58X2404SFPIAG Two-wire serial interface 2k EEPROM (256-word × 8-bit) 4k EEPROM (512-word × 8-bit) REJ03C0133-0400 Rev.4.00 Jul.13.20.
HN58X24xxSFPIAG series are two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM).

HN58X2404SFPIAG Features

* Single supply: 1.8 V to 5.5 V
* Two-wire serial interface (I2CTM serial bus
* 1)
* Clock frequency: 400 kHz
* Power dissipation:  Standby: 3 µA (max)  Active (Read): 1 mA (max)  Active (Write): 3 mA (max)
* Automatic page write: 8-byte/page
* Wr

📥 Download Datasheet

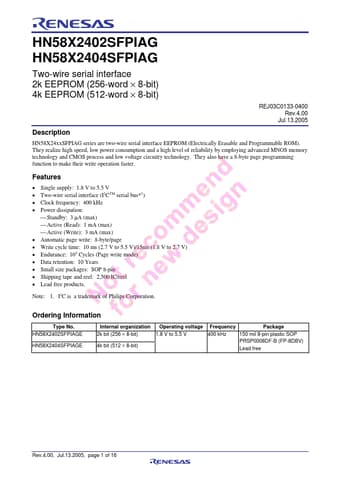

HN58X2404SFPIAG Datasheet Preview — This datasheet PDF includes multiple part numbers: HN58X2404SFPIAG, HN58X2402SFPIAG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: HN58X2404SFPIAG, HN58X2402SFPIAG
Manufacturer: Renesas ↗
File Size: 198.31 KB
Datasheet: HN58X2402SFPIAG-Renesas.pdf
Description: EEPROM
Note: This datasheet PDF includes multiple part numbers: HN58X2404SFPIAG, HN58X2402SFPIAG.
Please refer to the document for exact specifications by model.
