HIP6604B, HIP6601B - Synchronous Rectified BuckMOSFET Drivers

HIP6604B Description

DATASHEET HIP6601B, HIP6603B, HIP6604B Synchronous Rectified BuckMOSFET Drivers N1cO-oN8Tn8OtR8aR-cEINtECoTCOuEOMrRMMTSMeEIcLENhoNDnrDiEcwEDawDlFSwRO.

HIP6604B Features

* Drives Two N-Channel MOSFETs
* Adaptive Shoot-Through Protection
* Internal Bootstrap Device
* Supports High Switching Frequency - Fast Output Rise Time - Propagation Delay 30ns
* Small 8 Ld SOIC and EPSOIC and 16 Ld QFN Packages
* Dual Gate-Drive Vo

HIP6604B Applications

* involving trade-offs between switching losses and conduction losses. The HIP6604B can be configured as either a HIP6601B or a HIP6603B. The output drivers in the HIP6601B, HIP6603B and HIP6604B have the capacity to efficiently switch power MOSFETs at frequencies up to 2MHz. Each driver is capable of

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HIP6604B, HIP6601B. Please refer to the document for exact specifications by model.

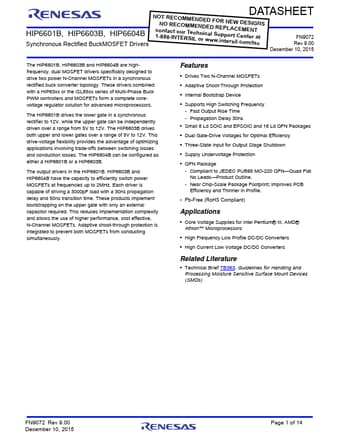

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HIP6604B, HIP6601B
Manufacturer
Renesas ↗
File Size
471.40 KB
Datasheet
HIP6601B-Renesas.pdf
Description
Synchronous Rectified BuckMOSFET Drivers
Note
This datasheet PDF includes multiple part numbers: HIP6604B, HIP6601B.
Please refer to the document for exact specifications by model.
