HFA3135, HFA3134 Ultra High Frequency Matched Pair Transistor

HFA3135 Description

HFA3134, HFA3135 Ultra High Frequency Matched Pair Transistors The HFA3134 and HFA3135 are Ultra High Frequency Transistor pairs that are fabricated .

HFA3135 Features

* NPN Transistor (fT)
* . . . . 8.5GHz
* NPN Current Gain (hFE)
* . . . . 100
* NPN Noise Figure (50) at 1.0GHz
* . . . 2.6dB
* PNP Transistor (fT)

HFA3135 Applications

* Both arrays are matched high frequency transistor pairs. The matching simplifies DC bias problems and it minimizes imbalances in differential amplifier configurations. Their high fT enables the design of UHF amplifiers which exhibit exceptional stability. Ordering Information PART NUMBER TEMP. (B

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HFA3135, HFA3134. Please refer to the document for exact specifications by model.

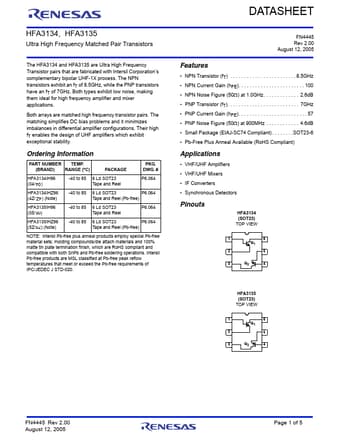

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HFA3135, HFA3134
Manufacturer
Renesas ↗
File Size
364.25 KB
Datasheet
HFA3134-Renesas.pdf
Description
Ultra High Frequency Matched Pair Transistor
Note
This datasheet PDF includes multiple part numbers: HFA3135, HFA3134.
Please refer to the document for exact specifications by model.
