HFA1405 Video Operational Amplifier

HFA1405 Description

HFA1405 POSSIOBBLESEOSLL2UE4B8TS0ET, IPETRLU5OT4DE5U5PCRTODUCT Quad, 560MHz, Low Power, Video Operational Amplifier DATASHEET FN3604 Rev 9.00 March.

HFA1405 Features

* Low Supply Current
* . . 5.8mA/Op Amp
* High Input Impedance
* . . . 1M
* Wide -3dB Bandwidth (AV = +2)
* . . . 560MHz
* Very Fast Slew Rate
* . 2500V/s

HFA1405 Applications

* The excellent gain flatness and differential gain/phase performance make these amplifiers well suited for component or composite video applications. Video performance is maintained even when driving a back terminated cable (RL = 150), and degrades only slightly when driving two back terminated cab

📥 Download Datasheet

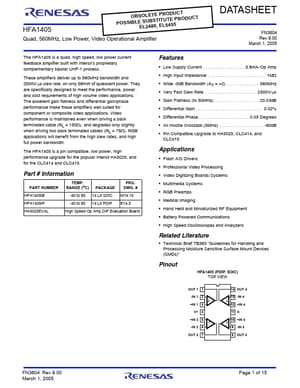

Preview of HFA1405 PDF
datasheet Preview Page 2 datasheet Preview Page 3
