HD74ACT125, HD74AC125 Quad Buffer/Line Driver

HD74ACT125 Description

HD74AC125/HD74ACT125 Quad Buffer/Line Driver with 3-State Output REJ03D0246 *0300 Rev.3.00 Nov.12.2004 .
The HD74AC125/HD74ACT125 is an quad buffer and line driver designed to be employed as a memory address driver, clock driver and bus oriented transmitt.

HD74ACT125 Features

* 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
* Outputs Source/Sink 24 mA
* HD74ACT125 has TTL-Compatible Inputs
* Ordering Information: Ex. HD74AC125 Part Name Package Type Package Code Package Abbreviation Taping Abbreviation (Quantity) HD

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HD74ACT125, HD74AC125. Please refer to the document for exact specifications by model.

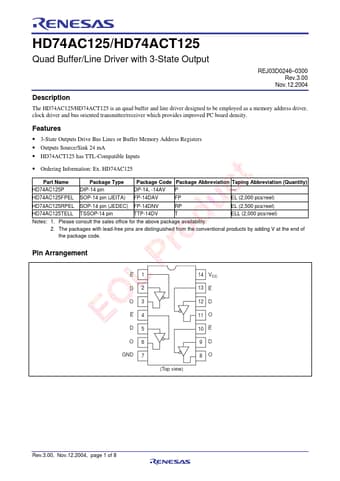

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HD74ACT125, HD74AC125
Manufacturer
Renesas ↗
File Size
269.55 KB
Datasheet
HD74AC125-Renesas.pdf
Description
Quad Buffer/Line Driver
Note
This datasheet PDF includes multiple part numbers: HD74ACT125, HD74AC125.
Please refer to the document for exact specifications by model.
