Description

Data Sheet HA17431H Series Shunt Regulator R03DS0088EJ0300 Rev.3.00 Jan 10, 2014 .
The HA17431H series is temperature-compensated variable shunt regulators.

📥 Download Datasheet

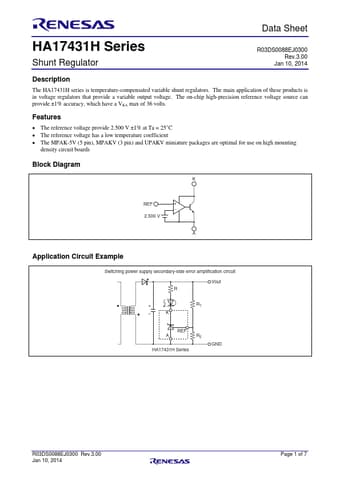

HA17431HLP Datasheet Preview — This datasheet PDF includes multiple part numbers: HA17431HLP, HA17431H. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HA17431HLP, HA17431H
Manufacturer: Renesas ↗
File Size: 180.06 KB
Datasheet: HA17431H_RenesasTechnology.pdf
Description: Shunt Regulator
Note: This datasheet PDF includes multiple part numbers: HA17431HLP, HA17431H.
Please refer to the document for exact specifications by model.

Features

* The reference voltage provide 2.500 V ±1% at Ta = 25°C
* The reference voltage has a low temperature coefficient
* The MPAK-5V (5 pin), MPAKV (3 pin) and UPAKV miniature packages are optimal for use on high mounting density circuit boards Block Diagram K REF +
