H7N1005DS, H7N1005DL Datasheet - Renesas

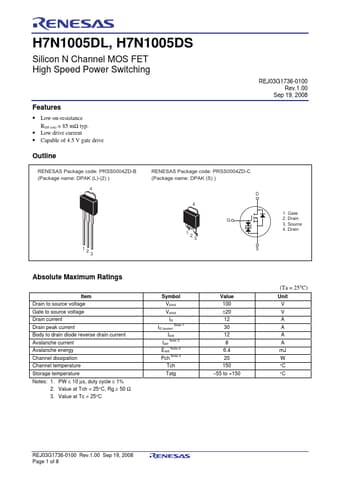

H7N1005DL-Renesas.pdf

H7N1005DS Datasheet Preview — This datasheet PDF includes multiple part numbers: H7N1005DS, H7N1005DL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

H7N1005DS, H7N1005DL

Manufacturer:

Renesas ↗

File Size:

113.02 KB

Description:

Silicon n-channel mos fet.

Note:

This datasheet PDF includes multiple part numbers: H7N1005DS, H7N1005DL.
Please refer to the document for exact specifications by model.

H7N1005DS, H7N1005DL, Silicon N-Channel MOS FET

H7N1005DS Features

* Low on-resistance RDS (on) = 85 mΩ typ.

* Low drive current

* Capable of 4.5 V gate drive Outline REJ03G1736-0100 Rev.1.00 Sep 19, 2008 RENESAS Package code: PRSS0004ZD-B (Package name: DPAK (L)-(2) ) 4 123 RENESAS Package code: PRSS0004ZD-C (Package name: DPAK (S) ) D
