FS30ASJ-06F N-channel MOSFET

FS30ASJ-06F Description

FS30ASJ-06F High-Speed Switching Use Nch Power MOS FET .

FS30ASJ-06F Features

* Drive voltage : 4 V
* VDSS : 60 V
* rDS(ON) (max) : 22 mΩ
* ID : 30 A

FS30ASJ-06F Applications

* Motor control, lamp control, solenoid control, DC-DC converters, etc. Maximum Ratings Parameter Drain-source voltage Gate-source voltage Drain current Drain current (Pulsed) Avalanche current (Pulsed) Source current Source current (Pulsed) Maximum power dissipation Channel temperature Storage tempe

📥 Download Datasheet

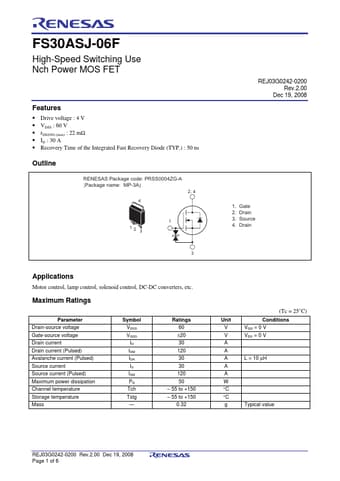

Preview of FS30ASJ-06F PDF
datasheet Preview Page 2 datasheet Preview Page 3
