F1950NBGI8, F1950 Digital Step Attenuator

F1950NBGI8 Description

.
This document describes the specification for the F1950 Digital Step Attenuator.

F1950NBGI8 Features

* Glitch-FreeTM, < 0.6 dB transient overshoot
* Spurious Free Design
* 3V to 5V supply
* Attenuation Error < 0.3 dB @ 2 GHz
* Low Insertion Loss < 1.3 dB @ 2 GHz
* Excellent Linearity +65 dBm IP3I
* Fast settling time, < 400 ns
* Class 2 JEDEC ESD (> 2kV HBM)
* Se

F1950NBGI8 Applications

* The silicon design has very low insertion loss and low distortion (+65 dBm IP3I). The device has pinpoint accuracy and settles to final attenuation value within 400 ns. Most importantly, the F1950 includes Renesas’ Glitch-FreeTM technology which results in less than 0.6 dB of overshoot ringing duri

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: F1950NBGI8, F1950. Please refer to the document for exact specifications by model.

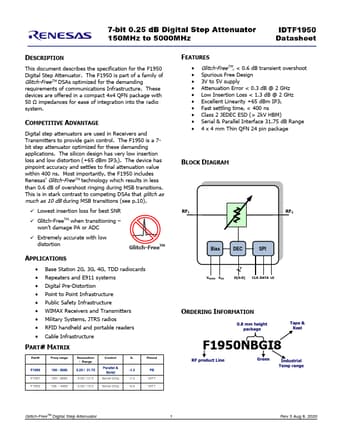

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
F1950NBGI8, F1950
Manufacturer
Renesas ↗
File Size
2.38 MB
Datasheet
F1950-Renesas.pdf
Description
Digital Step Attenuator
Note
This datasheet PDF includes multiple part numbers: F1950NBGI8, F1950.
Please refer to the document for exact specifications by model.
