EL7104 - Power MOSFET Driver

Renesas

📥 Download Datasheet

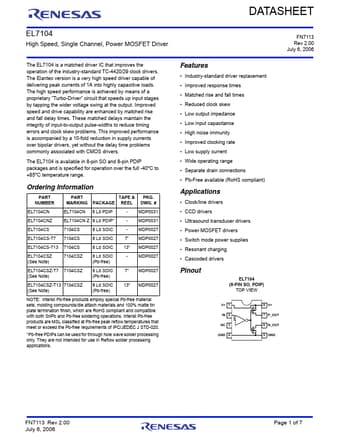

EL7104 Datasheet Preview — Preview of EL7104 PDF

Datasheet Details

Part number	EL7104
Manufacturer	Renesas
File Size	449.99 KB
Description	Power MOSFET Driver
Datasheet	EL7104-Renesas.pdf

EL7104 Product details

Description

CONDITIONS MIN TYP MAX UNIT INPUT VIH IIH VIL IIL VHVS OUTPUT Logic “1” Input Voltage Logic “1” Input Current Logic “0” Input Voltage Logic “0” Input Current Input Hysteresis @V+ @0V 2.4 V 0.1 10 µA 0.8 V 0.1 10 µA 0.3 V ROH Pull-Up Resistance ROL Pull-Down Resistance IOUT Output Leakage Current IPK Peak Output Current IDC Continuous Output Current POWER SUPPLY IOUT = -100mA IOUT = +100mA V+/GND Source/Sink Source/Sink 1.5 4  2 4  0.2 10 µA 4.0 A 200

Features

Industry-standard driver replacement.
Improved response times.
Matched rise and fall times.
Reduced clock skew.
Low output impedance.
Low input capacitance.
High noise immunity.
Improved clocking rate.
Low supply current.
Wide operating range.
Separate drain connections.
Pb-Free available (RoHS compliant).
