EL5191A, EL5191 - 1GHz Current Feedback Amplifier

Renesas

The EL5191A by Renesas is a 1GHz Current Feedback Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

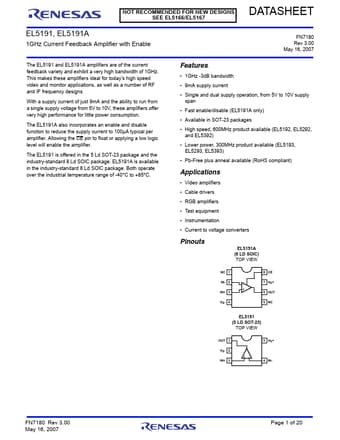

EL5191A 1GHz Current Feedback Amplifier by Renesas - Datasheet Preview — Official preview page of the **EL5191A** 1GHz Current Feedback Amplifier datasheet (Renesas).

Datasheet Details

Part number	EL5191A, EL5191
Manufacturer	Renesas
File Size	930.12 KB
Description	1GHz Current Feedback Amplifier
Datasheet	EL5191-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: EL5191A, EL5191. Please refer to the document for exact specifications by model.
Additional preview pages of the EL5191A datasheet.

EL5191A Product details

Description

CONDITIONS MIN TYP MAX UNIT AC PERFORMANCE BW BW1 -3dB Bandwidth 0.1dB Bandwidth AV = +1 AV = +2 1000 600 30 MHz MHz MHz SR Slew Rate tS 0.1% Settling Time eN Input Voltage Noise iN- IN- Input Current Noise iN+ IN+ Input Current Noise dG Differential Gain Error (Note 1) dP Differential Phase Error (Note 1) DC PERFORMANCE VO = -2.5V to +2.5V, AV = +2 VOUT = -2.5V to +2.5V, AV = -1 AV = +2 AV = +2 2400 2800 7 3.8 25 55 0.035 0.04 V/µs ns nV/Hz pA/Hz pA/Hz % ° VOS TCVOS Of

Features

1GHz -3dB bandwidth.
9mA supply current.
Single and dual supply operation, from 5V to 10V supply span.
Fast enable/disable (EL5191A only).
Available in SOT-23 packages.
High speed, 600MHz product available (EL5192, EL5292, and EL5392).
Lower power, 300MHz product available (EL5193, EL5293, EL5393).
Pb-Free plus anneal available (RoHS compliant).
