DG444 - CMOS Analog Switches

📥 Download Datasheet

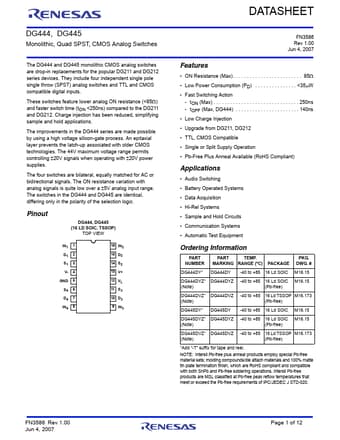

Preview of DG444 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DG444
Manufacturer Renesas
File Size 596.38 KB
Description CMOS Analog Switches
Datasheet download datasheet DG444-Renesas.pdf

DG444 Product details

Description

PIN SYMBOL DESCRIPTION 1 IN1 Logic Control for Switch 1 2 D1 Drain (Output) Terminal for Switch 1 3 S1 Source (Input) Terminal for Switch 1 4 V- Negative Power Supply Terminal 5 GND Ground Terminal (Logic Common) 6 S4 Source (Input) Terminal for Switch 4 7 D4 Drain (Output) Terminal for Switch 4 8 IN4 Logic Control for Switch 4 9 IN3 Logic Control for Switch 3 10 D3 Drain (Output) Terminal for Switch 3 11 S3 Source (Input) Terminal for Switch 3 12 VL Logic R
