DA14594 - Multi-Core Bluetooth LE 5.x SoC

Product Overview

Renesas

Datasheet Details

Part number	DA14594
Manufacturer	Renesas
File Size	5.52 MB
Description	Multi-Core Bluetooth LE 5.x SoC
Datasheet	DA14594 Datasheet
Note	This datasheet PDF includes multiple part numbers: DA14594, DA14592. Please refer to the document for exact specifications by model.

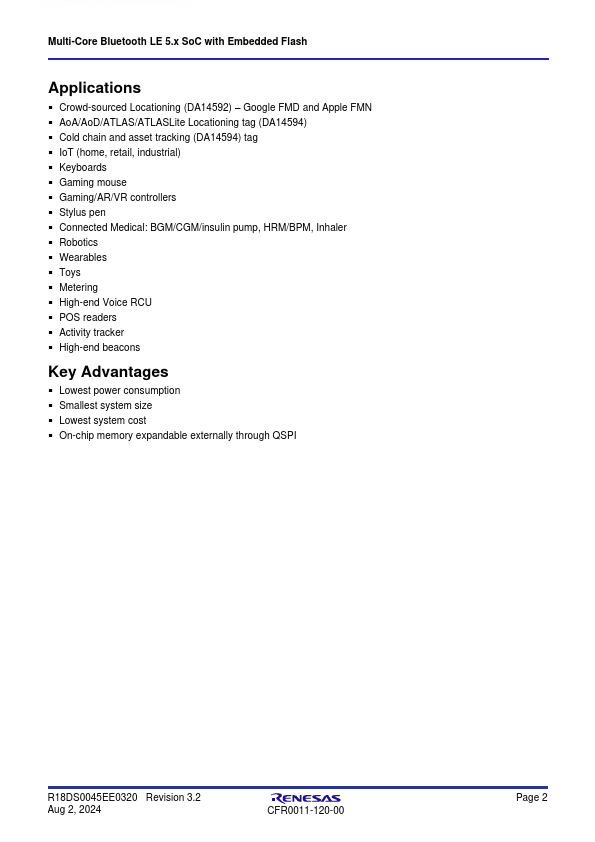

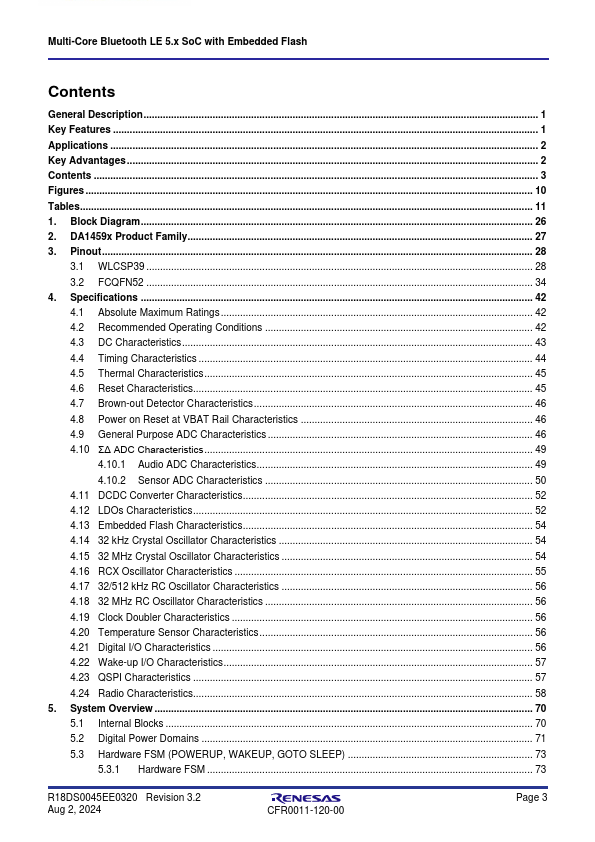

Additional preview pages of the DA14594 datasheet.

Product details

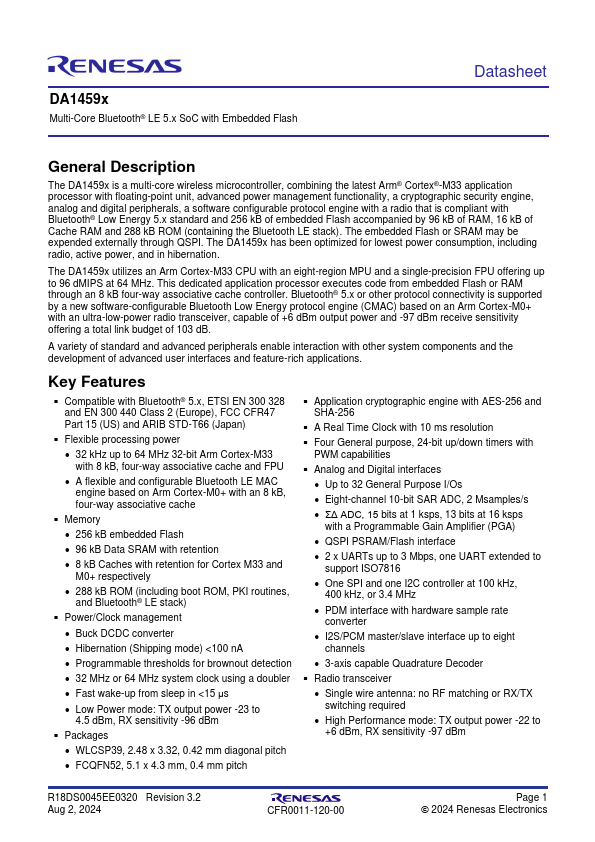

Description

The DA1459x is a multi-core wireless microcontroller, combining the latest Arm® Cortex®-M33 application processor with floating-point unit, advanced power management functionality, a cryptographic security engine, analog and digital peripherals, a software configurable protocol engine with a radio that is compliant with Bluetooth® Low Energy 5.x standard and 256 kB of embedded Flash accompanied by 96 kB of RAM, 16 kB of Cache RAM and 288 kB ROM (containing the Bluetooth LE stack).

Features

Compatible with Bluetooth® 5.x, ETSI EN 300 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan).
Flexible processing power.
32 kHz up to 64 MHz 32-bit Arm Cortex-M33 with 8 kB, four-way associative cache and FPU.
A flexible and configurable Bluetooth LE MAC engine based on Arm Cortex-M0+ with an 8 kB, four-way associative cache.
Memory.
256 kB embedded Flash.
96 kB Data SRAM with retention.
8 kB Caches.
