CA3240E, CA3240 BiMOS Operational Amplifier

CA3240E Description

DATASHEET CA3240, CA3240A Dual, 4.5MHz, BiMOS Operational Amplifier with MOSFET Input/Bipolar Output FN1050 Rev 6.00 March 4, 2005 The CA3240A and .

CA3240E Features

* Dual Version of CA3140
* Internally Compensated
* MOSFET Input Stage - Very High Input Impedance (ZIN) 1.5T (Typ) - Very Low Input Current (II) 10pA (Typ) at 15V - Wide Common-Mode Input Voltage Range (VICR): Can Be Swung 0.5V Below Negative Supply Voltage Rail

CA3240E Applications

* NOTE: Intersil Pb-free products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified at Pb-free

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CA3240E, CA3240. Please refer to the document for exact specifications by model.

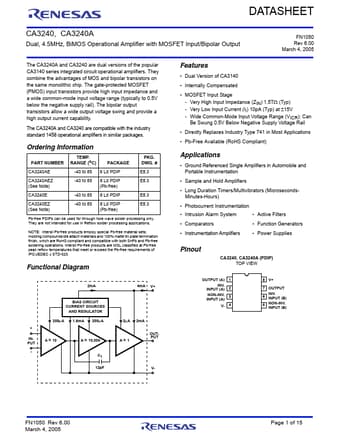

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CA3240E, CA3240
Manufacturer
Renesas ↗
File Size
877.85 KB
Datasheet
CA3240-Renesas.pdf
Description
BiMOS Operational Amplifier
Note
This datasheet PDF includes multiple part numbers: CA3240E, CA3240.
Please refer to the document for exact specifications by model.
