89HPES16H16 PCI Express Switch

Renesas

89HPES16H16 Description

16-Lane 16-Port PCI Express® Switch ® 89HPES16H16 Data Sheet Device Overview The 89HPES16H16 is a member of the IDT PRECISE™ family of PCI Express® .
Utilizing standard PCI Express interconnect, the PES16H16 provides the most efficient I/O connectivity for applications requiring high throughput, low.

89HPES16H16 Features

* High Performance PCI Express Switch
* Sixteen maximum switch ports
* Sixteen x1 ports
* Sixteen 2.5 Gbps embedded SerDes
* Supports pre-emphasis and receive equalization on per-port basis
* Delivers 64 Gbps (8 GBps) of aggregate switching capacity

📥 Download Datasheet

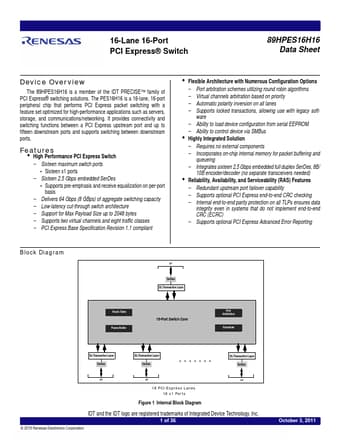

89HPES16H16 Datasheet Preview — Preview of 89HPES16H16 PDF

Datasheet Details

Part number: 89HPES16H16
Manufacturer: Renesas ↗
File Size: 467.44 KB
Datasheet: 89HPES16H16-Renesas.pdf
Description: PCI Express Switch
