7133LA - 2K x 16 DUAL-PORT SRAM

Download the 7133LA datasheet PDF. This datasheet also covers the 7133SA variant, as both devices belong to the same 2k x 16 dual-port sram family and are provided as variant models within a single manufacturer datasheet.

General Description

The IDT7133/7143 are high-speed 2K x 16 Dual-Port Static RAMs.

The IDT7133 is designed to be used as a stand-alone 16-bit Dual-Port RAM or as a “MASTER” Dual-Port RAM together with the IDT7143 “SLAVE” Dual-Port in 32-bit-or-more word width systems.

Key Features

  • High-speed access.
  • Commercial: 20/25/35/45/55/70/90ns (max. ).
  • Industrial: 25ns (max. ).
  • Military: 35/55/70/90ns (max. ).
  • Low-power operation.
  • IDT7133/43SA Active: 1150mW (typ. ) Standby: 5mW (typ. ).
  • IDT7133/43LA Active: 1050mW (typ. ) Standby: 1mW (typ. ).

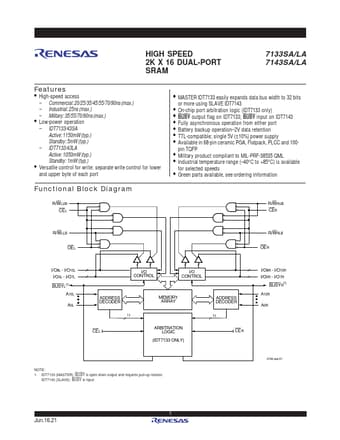

  • Versatile control for write: separate write control for lower and upper byte of each port Functional Block Diagram R/WLUB CEL.
  • MASTER IDT7133 easily expands data bus width to 32 bit.
