5P49V60B - Programmable Clock Generator

Renesas

📥 Download Datasheet

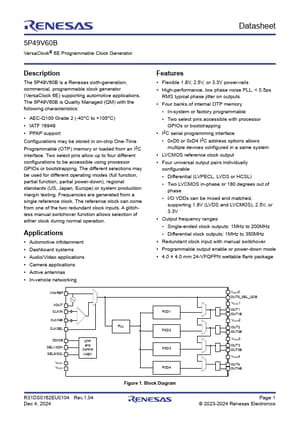

5P49V60B Datasheet Preview — Preview of 5P49V60B PDF

Datasheet Details

Part number	5P49V60B
Manufacturer	Renesas
File Size	1.06 MB
Description	Programmable Clock Generator
Datasheet	5P49V60B-Renesas.pdf

5P49V60B Product details

Description

The 5P49V60B is a Renesas sixth-generation, commercial, programmable clock generator (VersaClock 6E) supporting automotive applications. AEC-Q100 Grade 2 (-40°C to +105°C) IATF 16949 PPAP support Configurations may be stored in on-chip One-Time Programmable (OTP) memory or loaded from an I2C interface.Two select pins allow up to four different configurations to be accessible using processor GPIOs or boots

Features

Flexible 1.8V, 2.5V, or 3.3V power-rails.
High-performance, low phase noise PLL, < 0.5ps RMS typical phase jitter on outputs.
Four banks of internal OTP memory.
In-system or factory programmable.
Two select pins accessible with processor GPIOs or bootstrapping.
I2C serial programming interface.
0xD0 or 0xD4 I2C address options allows multiple devices configured in a same system.
LVCMOS reference clock output.
Four universal output pairs i.
