557G03LF 2 OUTPUT PCI-EXPRESS GEN1 CLOCK SOURCE

Renesas

Description

2 OUTPUT PCI-EXPRESS GEN1 CLOCK SOURCE DATASHEET ICS557-03 .
The ICS557-03 is a spread spectrum clock generator that supports PCI-Express Gen 1 and Ethernet requirements.

📥 Download Datasheet

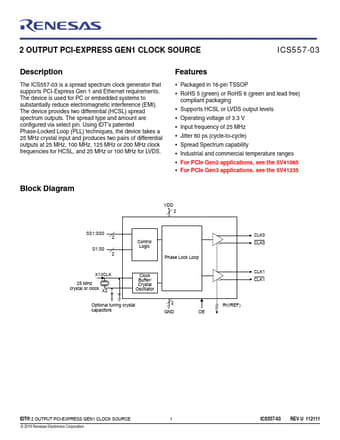

557G03LF Datasheet Preview — Preview of 557G03LF PDF

Datasheet Specifications

Part number: 557G03LF
Manufacturer: Renesas ↗
File Size: 285.65 KB
Datasheet: 557G03LF-Renesas.pdf
Description: 2 OUTPUT PCI-EXPRESS GEN1 CLOCK SOURCE

Features

* Packaged in 16-pin TSSOP
* RoHS 5 (green) or RoHS 6 (green and lead free) compliant packaging
* Supports HCSL or LVDS output levels
* Operating voltage of 3.3 V
* Input frequency of 25 MHz
* Jitter 60 ps (cycle-to-cycle)
* Spread Spectrum cap

Applications

* see the 5V41065
* For PCIe Gen3 applications, see the 5V41235 Block Diagram VDD 2 SS1:SS0 2 S1:S0 2 Control Logic Phase Lock Loop X1/ICLK 25 MHz crystal or clock X2 Clock Buffer/ Crystal Oscillator Optional tuning crystal capacitors 2 GND OE CLK0 CLK0 CLK1 CLK1 Rr(IREF) IDT® 2 O
