2SK1620S - Silicon N-Channel MOS FET

Download the 2SK1620S datasheet PDF. This datasheet also covers the 2SK1620 variant, as both devices belong to the same silicon n-channel mos fet family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low on-resistance.
  • High speed switching.
  • Low drive current.
  • No secondary breakdown.
  • Suitable for switching regulator, DC-DC converter and motor driver Outline REJ03G0957-0200 (Previous: ADE-208-1298) Rev.2.00 Sep 07, 2005.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2SK1620-Renesas.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 2SK1620S
Manufacturer Renesas
File Size 84.10 KB
Description Silicon N-Channel MOS FET
Datasheet download datasheet 2SK1620S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK1620S Silicon N-Channel MOSFET Hitachi Semiconductor
2SK1620 Silicon N-Channel MOSFET Hitachi Semiconductor
2SK1620L Silicon N-Channel MOSFET Hitachi Semiconductor
2SK1622 Silicon N-Channel MOS FET Hitachi Semiconductor
2SK1622L Silicon N-Channel MOS FET Hitachi Semiconductor

Other Datasheets by Renesas

Part Number Description
2SK1620 Silicon N-Channel MOS FET
2SK1620L Silicon N-Channel MOS FET
2SK1629-E1-E MOSFET
2SK1667 Silicon N-Channel MOSFET
2SK1669 Silicon N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

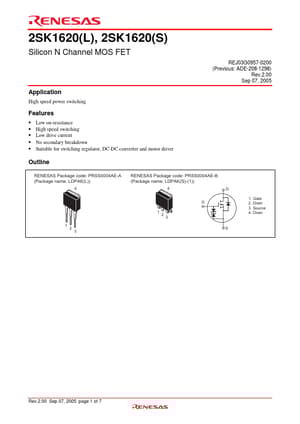

2SK1620(L), 2SK1620(S) Silicon N Channel MOS FET Application High speed power switching Features • Low on-resistance • High speed switching • Low drive current • No secondary breakdown • Suitable for switching regulator, DC-DC converter and motor driver Outline REJ03G0957-0200 (Previous: ADE-208-1298) Rev.2.00 Sep 07, 2005 RENESAS Package code: PRSS0004AE-A (Package name: LDPAK(L)) 4 RENESAS Package code: PRSS0004AE-B (Package name: LDPAK(S)-(1)) 4 D 1 2 3 123 G S 1. Gate 2. Drain 3. Source 4. Drain Rev.2.00 Sep 07, 2005 page 1 of 7 2SK1620(L), 2SK1620(S) Absolute Maximum Ratings Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes: 1.
