2SC1472 - Silicon NPN Epitaxial Type Transistor

Features

  • 8, Fax: (2) 2713-2999 Renesas Technology (Shanghai) Co. , Ltd. Unit2607 Ruijing Building, No.205 Maoming Road (S), Shanghai 200020, China Tel: (21) 6472-1001, Fax: (21) 6415-2952 Renesas Technology S.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC1472 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SC1472K - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SC1470 - Power Transistors (Shindengen Electric)
  • 2SC1470 - SILICON NPN POWER TRANSISTOR (New Jersey Semi-Conductor)
  • 2SC1471 - TO3 Silicon NPN High Voltage Switching Transistor (New Jersey Semi-Conductor)
  • 2SC1473 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SC1473 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC1473A - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SC1473A - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC1475 - NPN Transistor (ETC)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text

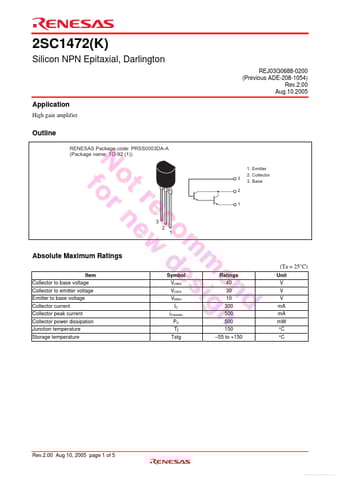

2SC1472(K) Silicon NPN Epitaxial, Darlington REJ03G0688-0200 (Previous ADE-208-1054) Rev.2.00 Aug.10.2005 Application High gain amplifier Outline RENESAS Package code: PRSS0003DA-A (Package name: TO-92 (1)) 1. Emitter 2. Collector 3. Base 3 2 1 3 2 1 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg Ratings 40 30 10 300 500 500 150 –55 to +150 Unit V V V mA mA mW °C °C Rev.2.00 Aug 10, 2005 page 1 of 5 Free Datasheet http://www.datasheet4u.
