2SA1122, Silicon PNP Epitaxial Transistor

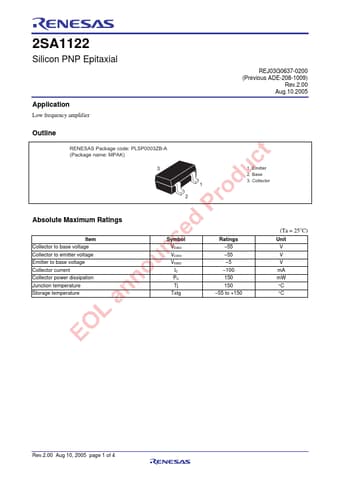

2SA1122 Silicon PNP Epitaxial Application Low frequency amplifier Outline RENESAS Package code: PLSP0003ZB-A (Package name: MPAK) 3 1 2 REJ03G0637-0200 (Previous ADE-208-1009) Rev.2.00 Aug.10.2005 1.

Emitter 2.

Base 3.

Collector Absolute Maximum Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 55 55
