1SS270A

The 1SS270A is Silicon Epitaxial Planar Diode designed by Renesas.

Product Overview

Renesas

Part number	1SS270A
Manufacturer	Renesas
File Size	165.90 KB
Description	Silicon Epitaxial Planar Diode
Datasheet	1SS270A-Renesas.pdf

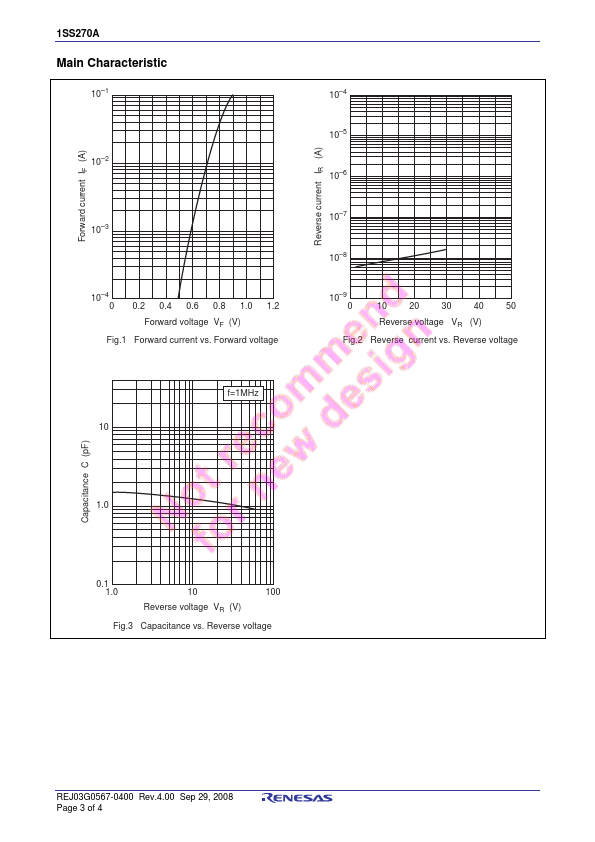

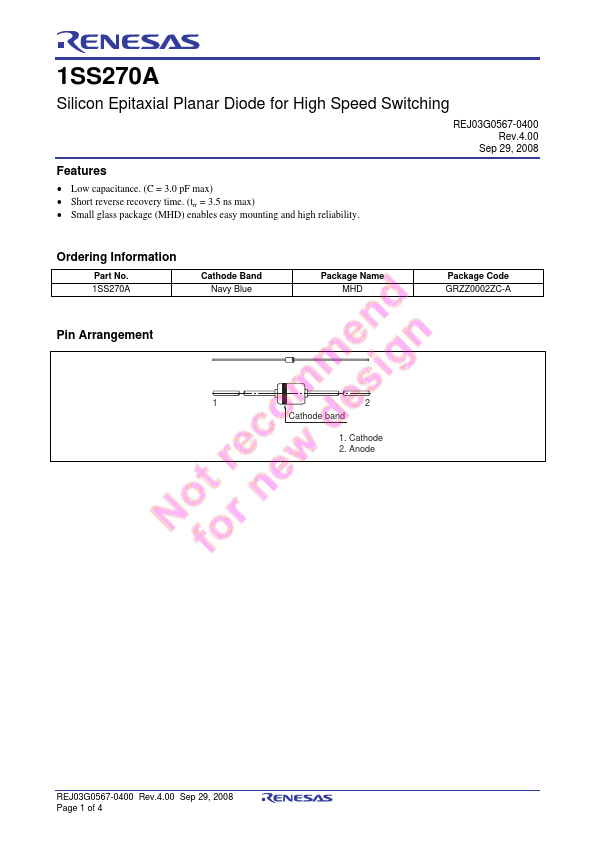

Additional preview pages of the 1SS270A datasheet.

Low capacitance. (C = 3.0 pF max).
Short reverse recovery time. (trr = 3.5 ns max).

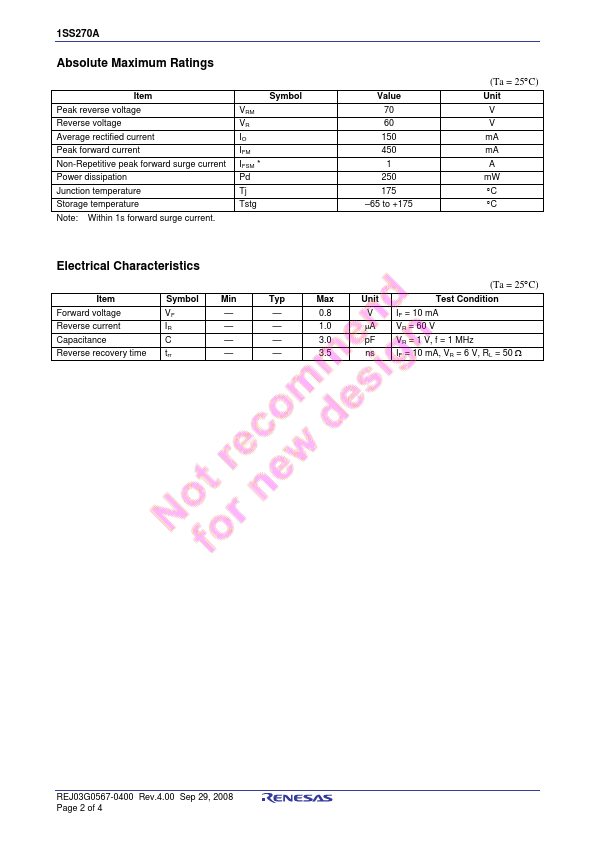

Small glass package (MHD) enables easy mounting and high reliability. Ordering Information Part No. 1SS270A Cathode Band Navy Blue Package Name MHD Package Code GRZZ0002ZC-A Pin Arrangement 1 2 Cathode band 1. Cathode 2. Anode REJ03G0567-0400 Rev.4.00 Sep 29, 2008 Page 1 of 4 1SS270A Absolute Maximum Ratings Item Peak reverse voltage Reverse voltage Average rectified curren.
