RNA51958B - Voltage Detecting a System Resetting IC Series

This page provides the datasheet information for the RNA51958B, a member of the RNA51958A Voltage Detecting a System Resetting IC Series family.

Datasheet Summary

Description

RNA51958A,B are semiconductor integrated circuits for resetting of all types of logic circuits such as CPUs, and has the feature of setting the detection voltage by adding external resistance.

Features

  • Few external parts Large delay time with a capacitor of small capacitance (td ≈ 100 ms, at 0.33 µF) Wide supply voltage range: 2 V to 17 V Wide.

📥 Download Datasheet

Datasheet preview – RNA51958B

Datasheet Details

Part number RNA51958B
Manufacturer Renesas Technology
File Size 185.90 KB
Description Voltage Detecting a System Resetting IC Series
Datasheet download datasheet RNA51958B Datasheet
Additional preview pages of the RNA51958B datasheet.

📁 Similar Datasheet

Other Datasheets by Renesas Technology
  • RNA51958A - Voltage Detecting a System Resetting IC Series
  • RNA51953A - Voltage Detecting a System Resetting IC Series
  • RNA51953B - Voltage Detecting a System Resetting IC Series
  • RNA51957A - Voltage Detecting a System Resetting IC Series
  • RNA51957B - Voltage Detecting a System Resetting IC Series
  • RNA50C27AUS - CMOS System-Reset IC
  • RNA52A10MM - Dual CMOS system-RESET

Full PDF Text Transcription

Click to expand full text

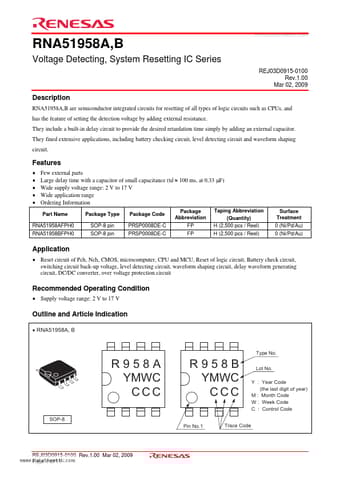

www.DataSheet4U.com RNA51958A,B Voltage Detecting, System Resetting IC Series REJ03D0915-0100 Rev.1.00 Mar 02, 2009 Description RNA51958A,B are semiconductor integrated circuits for resetting of all types of logic circuits such as CPUs, and has the feature of setting the detection voltage by adding external resistance. They include a built-in delay circuit to provide the desired retardation time simply by adding an external capacitor. They fined extensive applications, including battery checking circuit, level detecting circuit and waveform shaping circuit. Features • • • • • Few external parts Large delay time with a capacitor of small capacitance (td ≈ 100 ms, at 0.
