RKZ27BKG, RKZ-KG - Silicon Planar Zener Diode

Renesas Technology

Datasheet Details

Part number	RKZ27BKG, RKZ-KG
Manufacturer	Renesas ↗ Technology
File Size	104.92 KB
Description	Silicon Planar Zener Diode
Datasheet	RKZ-KG_RenesasTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: RKZ27BKG, RKZ-KG. Please refer to the document for exact specifications by model.

These diodes are delivered taped.

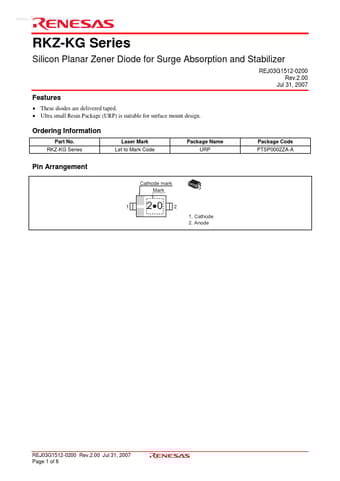

Ultra small Resin Package (URP) is suitable for surface mount design. Ordering Information Part No. RKZ-KG Series Laser Mark Let to Mark Code Package Name URP Package Code PTSP0002ZA-A Pin Arrangement Cathode mark Mark 1 2.
0 2 1. Cathode 2. Anode REJ03G1512-0200 Rev.2.00 Jul 31, 2007 Page 1 of 6 RKZ-KG Series Absolute Maximum Ratings (Ta = 25°C) Item Power dissipation Junction temperature Storage temperature Note: 1. With P. C.
