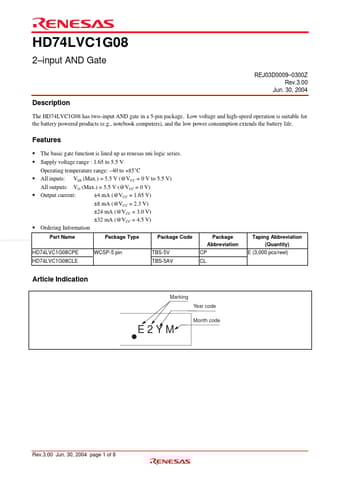

HD74LVC1G08 - 2-input AND Gate

Renesas Technology

Datasheet Details

The HD74LVC1G08 has two input AND gate in a 5-pin package.

The basic gate function is lined up as renesas uni logic series.
Supply voltage range : 1.65 to 5.5 V Operating temperature range:.
40 to +85°C.
All inputs: VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs: VO (Max. ) = 5.5 V (@VCC = 0 V).
Output current: ±4 mA (@VCC = 1.65 V) ±8 mA (@VCC = 2.3 V) ±24 mA (@VCC = 3.0 V) ±32 mA (@VCC = 4.5 V).
Ordering Information www. DataSheet4U. com Part Name HD74LVC1G08CPE HD74LVC1G08CLE Package Type WC.
