HD74LV2GT14A - Triple Inverters

Name: HD74LV2GT14A
SKU: HD74LV2GT14A-647495

Renesas Technology

📥 Download Datasheet

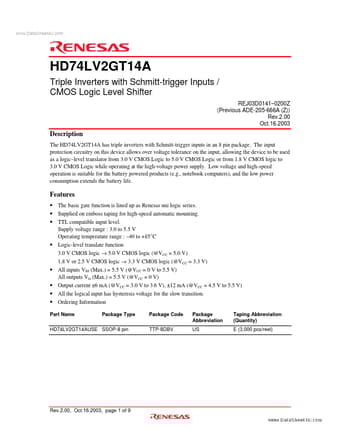

HD74LV2GT14A Datasheet Preview — Preview of HD74LV2GT14A PDF

Datasheet Details

Part number	HD74LV2GT14A
Manufacturer	Renesas Technology
File Size	123.39 KB
Description	Triple Inverters
Datasheet	HD74LV2GT14A_RenesasTechnology.pdf

HD74LV2GT14A Product details

Description

The HD74LV2GT14A has triple inverters with Schmitt-trigger inputs in an 8 pin package. level translator from 3.0 V CMOS Logic to 5.0 V CMOS Logic or from 1.8 V CMOS logic to 3.0 V CMOS Logic while operating at the high-voltage power supply.

Features

The basic gate function is lined up as Renesas uni logic series.
Supplied on emboss taping for high-speed automatic mounting.
TTL compatible input level. Supply voltage range : 3.0 to 5.5 V Operating temperature range :.
40 to +85°C.
Logic-level translate function 3.0 V CMOS logic → 5.0 V CMOS logic (@VCC = 5.0 V) 1.8 V or 2.5 V CMOS logic → 3.3 V CMOS logic (@VCC = 3.3 V).
All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO.
