HD74LV1GW07A - Dual Buffer Open Drain

Description

The HD74LV1GW07A has dual buffer open drain in a 6 pin package.

Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.

Features

  • The basic gate function is lined up as Renesas uni logic series.
  • Supplied on emboss taping for high-speed automatic mounting.
  • Supply voltage range : 1.65 to 5.5 V Operating temperature range :.
  • 40 to +85°C.
  • All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V, Output: Z).
  • Output current 6 mA (@VCC = 3.0 V to 3.6 V), 12 mA (@VCC = 4.5 V to 5.5 V).
  • All the logical input has hysteresis voltage.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by Renesas Technology

Full PDF Text Transcription

Click to expand full text

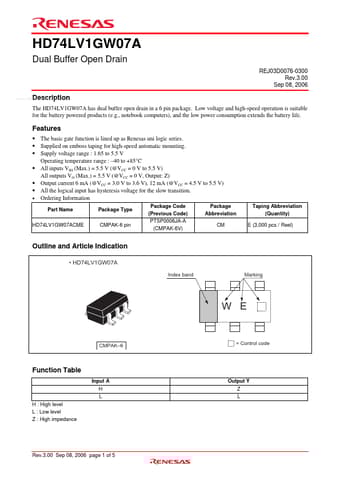

HD74LV1GW07A Dual Buffer Open Drain REJ03D0076-0300 Rev.3.00 Sep 08, 2006 www.DataSheet4U.net Description The HD74LV1GW07A has dual buffer open drain in a 6 pin package. Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life. Features • The basic gate function is lined up as Renesas uni logic series. • Supplied on emboss taping for high-speed automatic mounting. • Supply voltage range : 1.65 to 5.5 V Operating temperature range : –40 to +85°C • All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V, Output: Z) • Output current 6 mA (@VCC = 3.0 V to 3.6 V), 12 mA (@VCC = 4.5 V to 5.
