HA17903A - Dual Comparator

Name: HA17903A
SKU: HA17903A-628816

Renesas Technology

The HA17903A by Renesas Technology is a Dual Comparator. Below is the official datasheet preview.

Datasheet Details

Part number	HA17903A
Manufacturer	Renesas Technology
File Size	93.97 KB
Description	Dual Comparator
Datasheet	HA17903A_RenesasTechnology.pdf

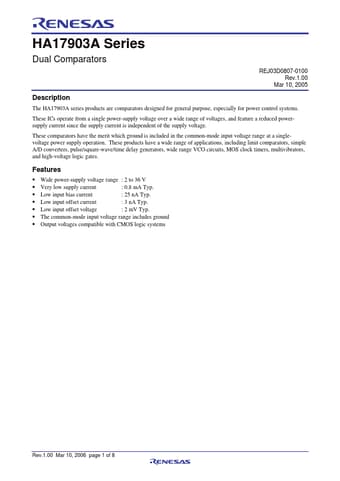

Additional preview pages of the HA17903A datasheet.

The HA17903A series products are comparators designed for general purpose, especially for power control systems.

Wide power-supply voltage range : 2 to 36 V.
Very low supply current : 0.8 mA Typ.
Low input bias current : 25 nA Typ.
Low input offset current : 3 nA Typ.
Low input offset voltage : 2 mV Typ.
The common-mode input voltage range includes ground.
Output voltages compatible with CMOS logic systems Rev.1.00 Mar 10, 2006 page 1 of 8 HA17903A Series.
Low electro-magnetic susceptibility Measurement Condition Vc.
