SS320F, SS32F - Surface Mount Schottky Barrier Rectifier

SS320F Description

SS3xxF Surface Mount Schottky Barrier Rectifier VOLTAGE RANGE 20 to 200 Volts CURRENT 3.0 Amperes .
1 Cathode 2 Anode 12 Top View Marking Code: SS32. SS320 Simplified outline SMAF and symbol MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS R.

SS320F Features

* Metal silicon junction, majority carrier conductionl

SS320F Applications

* Low power loss, high efficiency
* High forward surge current capability
* For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
* Case: SMAF
* P/N suffix V means AEC-Q101 qualified
* P/N suffix V means Halogen-free PINNING PI

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS320F, SS32F. Please refer to the document for exact specifications by model.

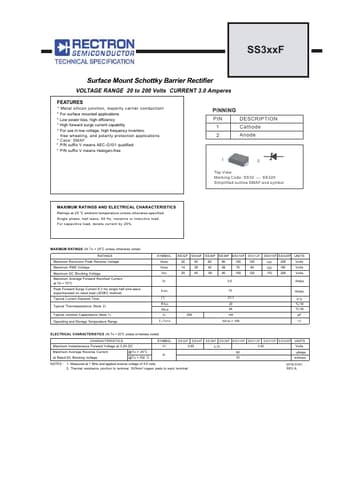

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS320F, SS32F
Manufacturer
Rectron
File Size
68.84 KB
Datasheet
SS32F-rectron.pdf
Description
Surface Mount Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: SS320F, SS32F.
Please refer to the document for exact specifications by model.
