SMF4751AV, SMF4734AV - ZENER DIODES

Name: SMF4751AV
SKU: SMF4751AV-1584530

Rectron

The SMF4751AV by Rectron is a ZENER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	SMF4751AV, SMF4734AV
Manufacturer	Rectron
File Size	234.02 KB
Description	ZENER DIODES
Datasheet	SMF4734AV-Rectron.pdf
Note	This datasheet PDF includes multiple part numbers: SMF4751AV, SMF4734AV. Please refer to the document for exact specifications by model.

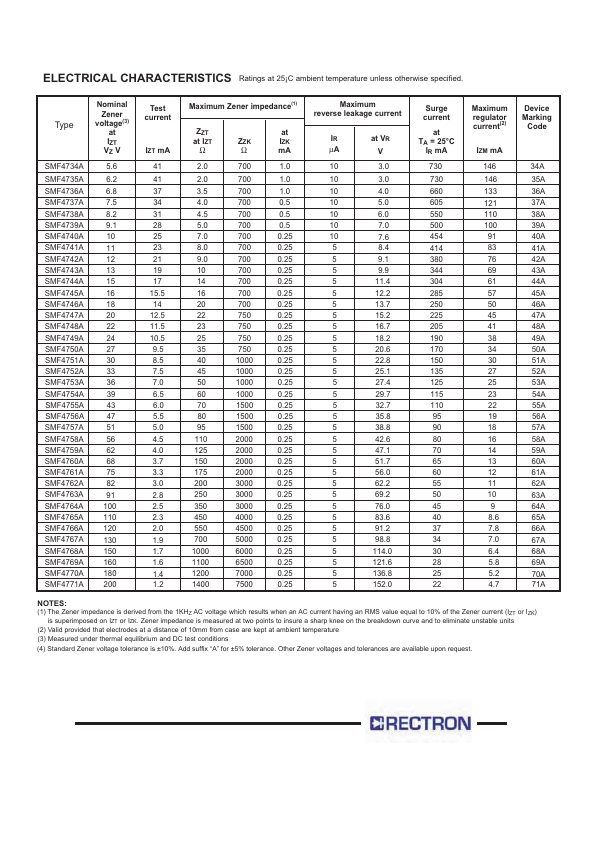

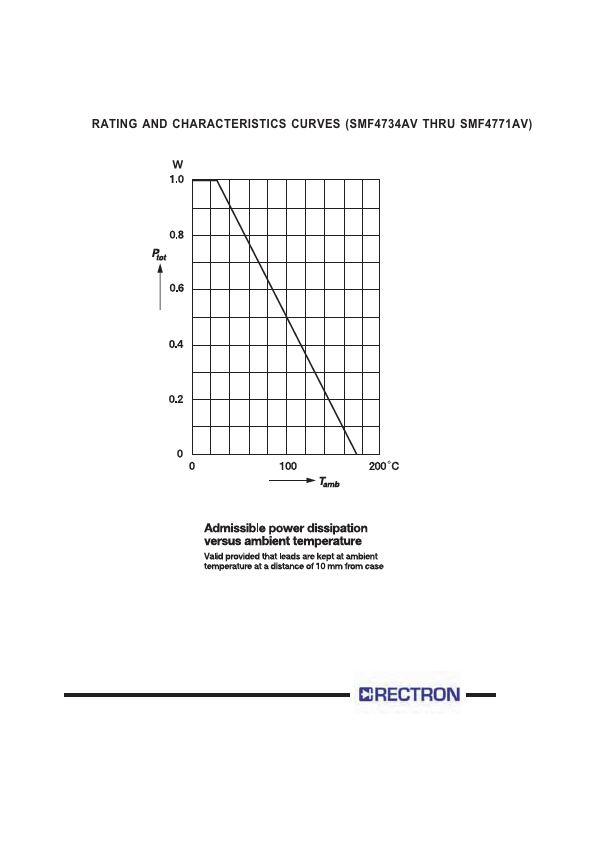

Additional preview pages of the SMF4751AV datasheet.

Silicon Planar Power Zener Diodes.
For use in stabilizing and clipping circuits with high power rating.
These diodes are also available in the MELF case with type designation ZM4728 thru ZM4764.
P/N suffix V means AEC-Q101 qualified, e. g:SMF4734AV.
P/N suffix V means Halogen-free.
