SMAJ8.5 - TRANSIENT VOLTAGE SUPPRESSOR

Download the SMAJ8.5 datasheet PDF. This datasheet also covers the SMAJ5.0 variant, as both devices belong to the same transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package has underwriters laboratory.
  • Glass passivated chip construction.
  • 400 watt surage capability at 1ms.
  • Excellent clamping capability.
  • Low zener impedance.
  • Fast response time.
  • P/N suffix V means AEC-Q101 qualified.
  • P/N suffix V means Halogen-free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMAJ5.0-Rectron.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SMAJ8.5
Manufacturer Rectron
File Size 212.90 KB
Description TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet SMAJ8.5 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SMAJ8.5 Surface Mount Transient Voltage Suppressor Taiwan Semiconductor
SMAJ8.5 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS MIC
SMAJ8.5 Transient Voltage Suppressor Microsemi
SMAJ8.5 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR EIC
SMAJ8.5 SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS LITE-ON

Other Datasheets by Rectron

Part Number Description
SMAJ8.5A TRANSIENT VOLTAGE SUPPRESSOR
SMAJ8.0 TRANSIENT VOLTAGE SUPPRESSOR
SMAJ8.0A TRANSIENT VOLTAGE SUPPRESSOR
SMAJ85 TRANSIENT VOLTAGE SUPPRESSOR
SMAJ85A TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text

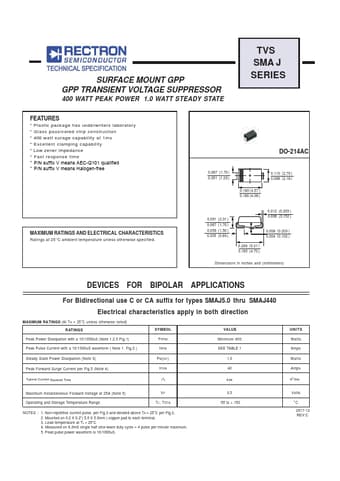

SURFACE MOUNT GPP GPP TRANSIENT VOLTAGE SUPPRESSOR 400 WATT PEAK POWER 1.0 WATT STEADY STATE TVS SMA J SERIES FEATURES * Plastic package has underwriters laboratory * Glass passivated chip construction * 400 watt surage capability at 1ms * Excellent clamping capability * Low zener impedance * Fast response time * P/N suffix V means AEC-Q101 qualified * P/N suffix V means Halogen-free MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. DO-214AC 0.067 (1.70 ) 0.051 (1.29 ) 0.180 (4.57 ) 0.160 (4.06 ) 0.110 (2.79 ) 0.086 (2.18 ) 0.091 (2.31 ) 0.067 (1.70 ) 0.059 (1.50 ) 0.035 (0.89 ) 0.012 (0.305 ) 0.006 (0.152 ) 0.008 (0.203 ) 0.004 (0.102 ) 0.209 (5.31 ) 0.185 (4.
