SA7L - SURFACE MOUNT SILICON RECTIFIER

Description

Cathode Band SA X YW Year

Part No.

code (W: A----week 01~02, B----week 03~04, C----week 05~06, ĂĂ Z----week 51~52) PAC

Features

  • Ideal for surface mounted.

📥 Download Datasheet

Datasheet Details

Part number SA7L
Manufacturer Rectron
File Size 86.34 KB
Description SURFACE MOUNT SILICON RECTIFIER
Datasheet download datasheet SA7L Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SA7.0 AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS MIC
SA7.0 Transient Voltage Suppression (TVS) Diodes Crydom
SA7.0 Transient Voltage Suppressors Microsemi
SA7.0 500W TRANSIENT VOLTAGE SUPPRESSOR Won-Top Electronics
SA7.0 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR Pan Jit International

Other Datasheets by Rectron

Part Number Description
SA7 SURFACE MOUNT SILICON RECTIFIER

Full PDF Text Transcription

Click to expand full text

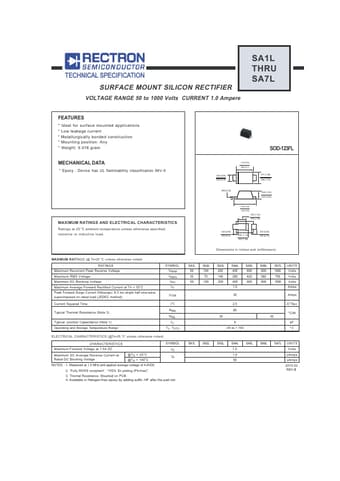

SURFACE MOUNT SILICON RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere SA1L THRU SA7L FEATURES * Ideal for surface mounted applications * Low leakage current * Metallurgically bonded construction * Mounting position: Any * Weight: 0.016 gram SOD-123FL MECHANICAL DATA * Epoxy : Device has UL flammability classification 94V-0 .035 (0.90) .028 (0.70) .114 (2.9) .106 (2.7) .077 (1.95) .069 (1.75) .008 (0.20) .039 (1.00) .035 (0.90) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. resistive or inductive load. .150 (3.8) .142 (3.6) .052 (1.32) .050 (1.28) .033 (0.85) .030 (0.75) .044 (1.12) .043 (1.08) .033 (0.85) .030 (0.
