RS206M, RS201M SILICON BRIDGE RECTIFIER

RS206M Description

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes RS201M THRU RS207M .
Rectron Logo Year. code (Y:Last digit of year & A: 2010, B:2011… ) RS20XM Part No. 50V Week.

RS206M Features

* Ideal for printed circuit board
* Surge overload rating: 60 amperes peak
* Mounting position: Any MECHANICAL DATA Epoxy: Device has UL flammability classification 94V-O .807 (20.5 ) .768 (19.5 ) RS-2M .146 (3.7 ) .130 (3.3 ) .453 ( 11.5 ) .413 ( 10.5 ) .106 (2 .7 ) .091 ( 2.3 ) .

RS206M Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS206M, RS201M. Please refer to the document for exact specifications by model.

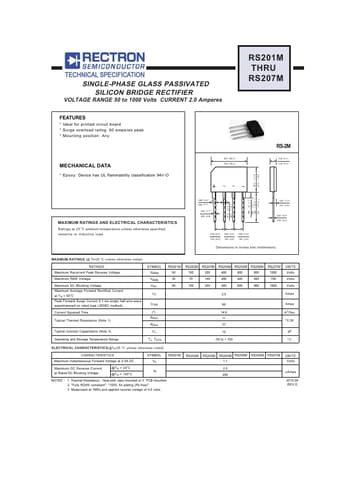

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS206M, RS201M
Manufacturer
Rectron
File Size
95.79 KB
Datasheet
RS201M-Rectron.pdf
Description
SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS206M, RS201M.
Please refer to the document for exact specifications by model.
