FR207P, FR201 FAST RECOVERY RECTIFIER

FR207P Description

FAST RECOVERY RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes FR201 THRU FR207 .

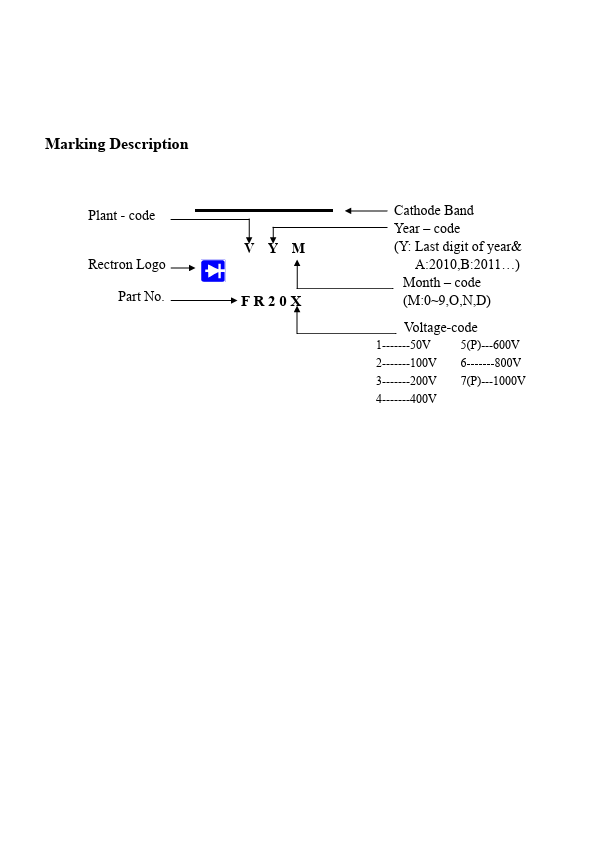

Plant - code Rectron Logo Part No. code (Y: Last digit of year& A:2010,B:2011…) Month. code (M:0~9,O.

FR207P Features

* Fast switching
* Low leakage
* Low forward voltage drop
* High current capability
* High current surge
* High reliability MECHANICAL DATA
* Case: Molded plastic
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 208C guaranteed

FR207P Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR207P, FR201. Please refer to the document for exact specifications by model.

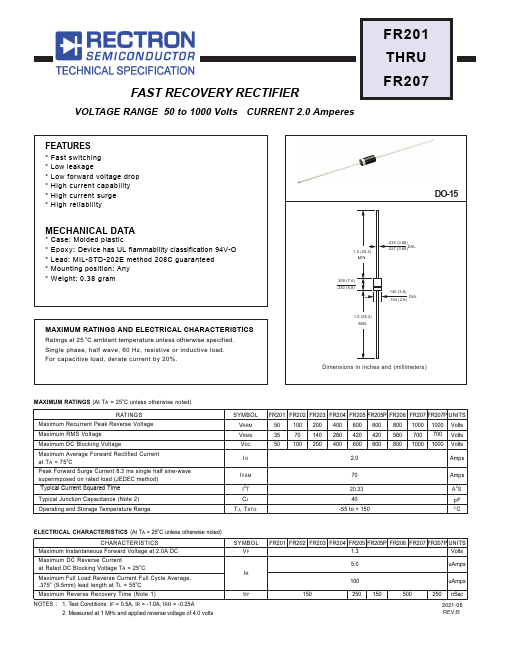

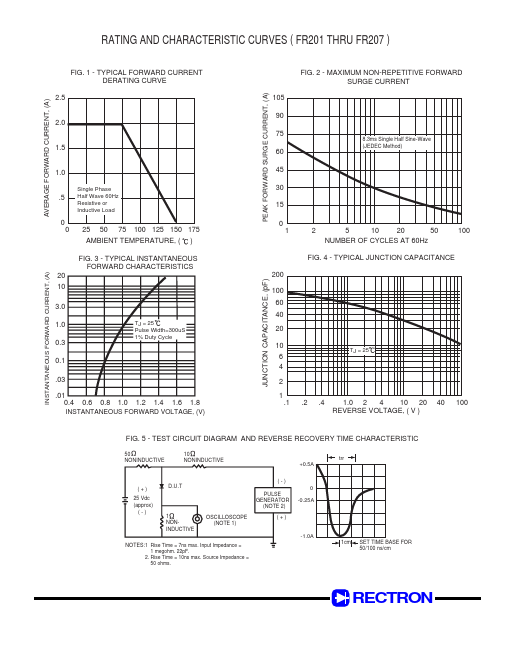

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FR207P, FR201
Manufacturer
Rectron
File Size
691.45 KB
Datasheet
FR201-Rectron.pdf
Description
FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: FR207P, FR201.
Please refer to the document for exact specifications by model.
