FR107, FR101 FAST RECOVERY RECTIFIER

Rectron

Description

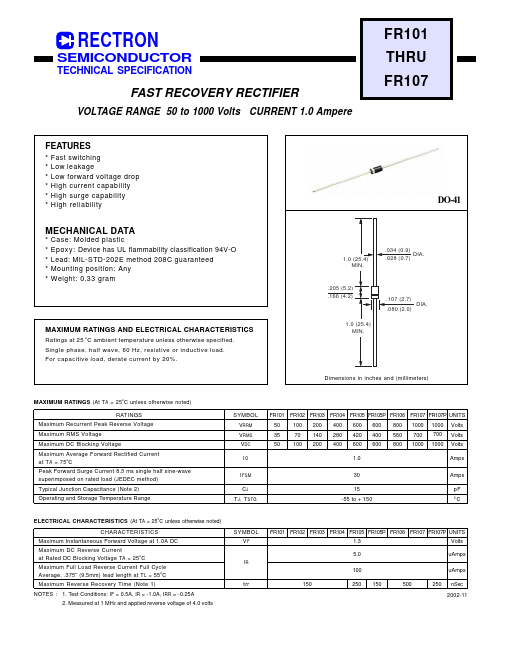

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION FAST RECOVERY RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere FR101 THRU FR107 .

📥 Download Datasheet

FR107 Datasheet Preview — This datasheet PDF includes multiple part numbers: FR107, FR101. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: FR107, FR101
Manufacturer: Rectron
File Size: 24.79 KB
Datasheet: FR101-Rectron.pdf
Description: FAST RECOVERY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: FR107, FR101.
Please refer to the document for exact specifications by model.

Features

* Fast switching
* Low leakage
* Low forward voltage drop
* High current capability
* High surge capability
* High reliability DO-41 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 208C
