FM1100 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Download the FM1100 datasheet PDF (FM120 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount schottky barrier rectifier.

Description

SCHOTTKY Cathode Band SX VYWW Year

Part No.

code (WW:01~52) PACKAGING OF DIODE AND BRIDG

Features

  • Low switching noise.
  • Low forward voltage drop.
  • High current capability.
  • High switching capability.
  • High surge capabitity.
  • High reliability.
  • P/N suffix V means AEC-Q 101 qualified.
  • P/N suffix V means Halogen-free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FM120-Rectron.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FM1100
Manufacturer Rectron
File Size 88.30 KB
Description SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet FM1100 Datasheet

📁 Similar Datasheet

  • FM1100 - Chip Schottky Barrier Diode (Formosa MS)
  • FM1100-M - Chip Schottky Barrier Diode (Formosa MS)
  • FM1100-MH - Chip Schottky Barrier Diodes (Formosa MS)
  • FM1100-MS - SMD Schottky Barrier Rectifier (Formosa MS)
  • FM1100-N - Chip Schottky Barrier Rectifier (PACELEADER INDUSTRIAL)
  • FM1100-S - Chip Schottky Barrier Diodes (Formosa MS)
  • FM1105 - Nonvolatile 5V Dual State Saver (Ramtron International Corporation)
  • FM1106 - Nonvolatile 3V Dual State Saver (Ramtron International Corporation)
  • FM1107 - Nonvolatile 3V Dual State Saver (Ramtron International Corporation)
  • FM1110 - Nonvolatile 5V Dual State Saver (Ramtron International Corporation)
Other Datasheets by Rectron
  • FM1100W - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • FM120 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • FM1200 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • FM130 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • FM140 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • FM150 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • FM160 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • FM180 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text

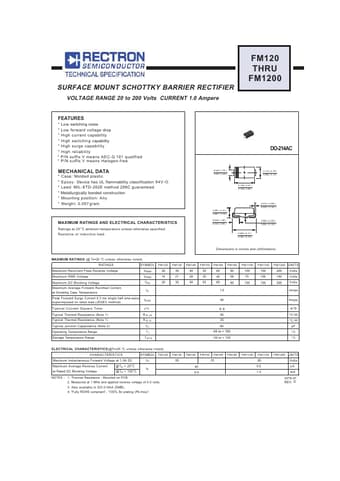

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 to 200 Volts CURRENT 1.0 Ampere FM120 THRU FM1200 FEATURES * Low switching noise * Low forward voltage drop * High current capability * High switching capability * High surge capabitity * High reliability * P/N suffix V means AEC-Q 101 qualified * P/N suffix V means Halogen-free MECHANICAL DATA * Case: Molded plastic * Epoxy: Device has UL flammability classification 94V-O * Lead: MIL-STD-202E method 208C guaranteed * Metallurgically bonded construction * Mounting position: Any * Weight: 0.057 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Resistive or inductive load. DO-214AC 0.067 (1.70 ) 0.051 (1.29 ) 0.180 ( 4.57 ) 0.160 ( 4.06 ) 0.110 ( 2.79 ) 0.
