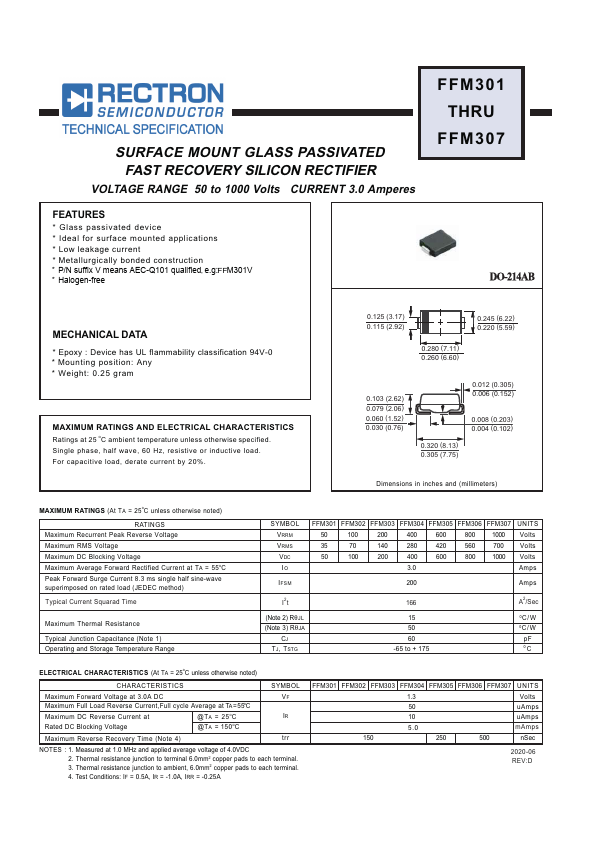

FFM303, FFM301 FAST RECOVERY SILICON RECTIFIER

FFM303 Description

SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY SILICON RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Amperes .

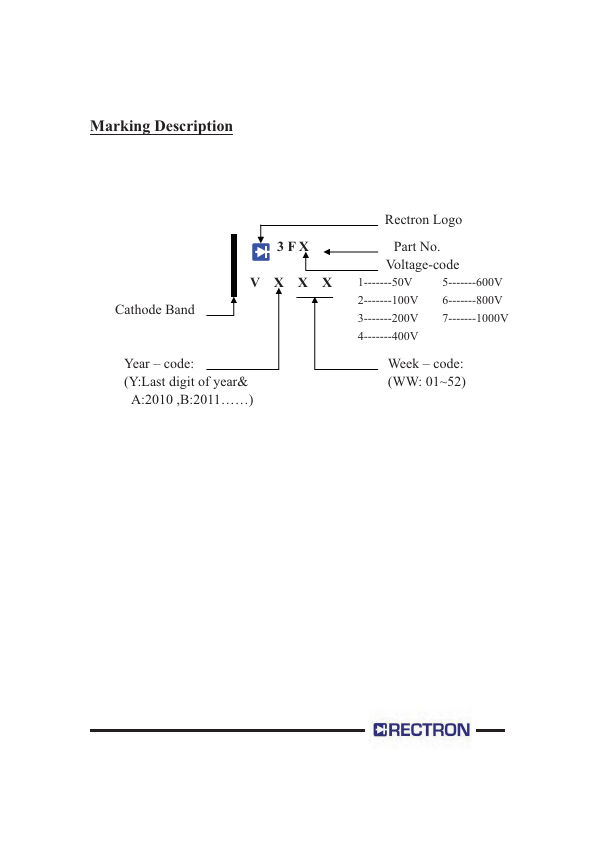

Cathode Band 3FX VXXX Year. code: (Y:Last digit of year& A:2010 ,B:2011……) Rectron Logo Part No.

FFM303 Features

* Glass passivated device

FFM303 Applications

* Low leakage current
* Metallurgically bonded construction
* P/N suffix V means AEC-Q101 qualified, e. g:FFM301V
* Halogen-free FFM301 THRU FFM307 MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0
* Mounting position: Any
* Weight: 0.25 gram MAXI

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FFM303, FFM301. Please refer to the document for exact specifications by model.

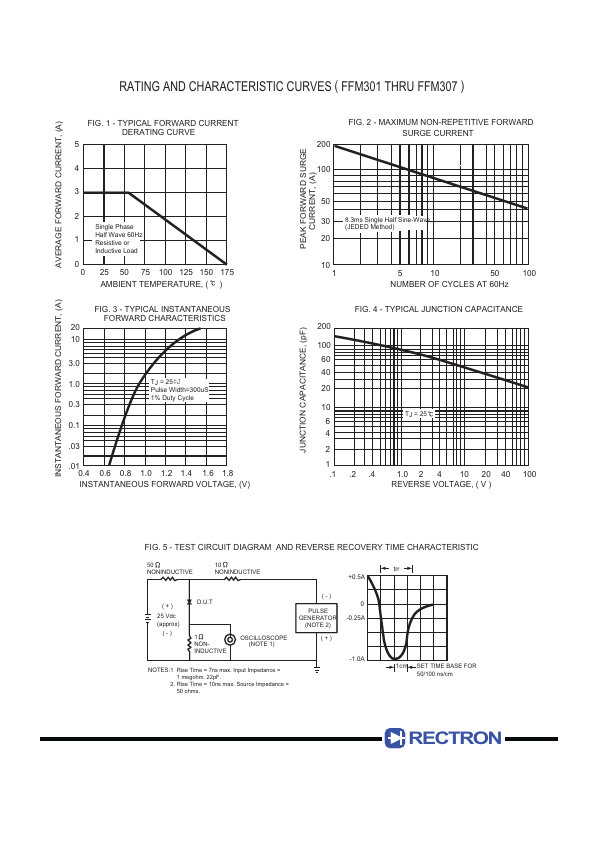

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FFM303, FFM301
Manufacturer
Rectron
File Size
162.63 KB
Datasheet
FFM301-Rectron.pdf
Description
FAST RECOVERY SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: FFM303, FFM301.
Please refer to the document for exact specifications by model.
