FFM206A, FFM201A FAST RECOVERY SILICON RECTIFIER

FFM206A Description

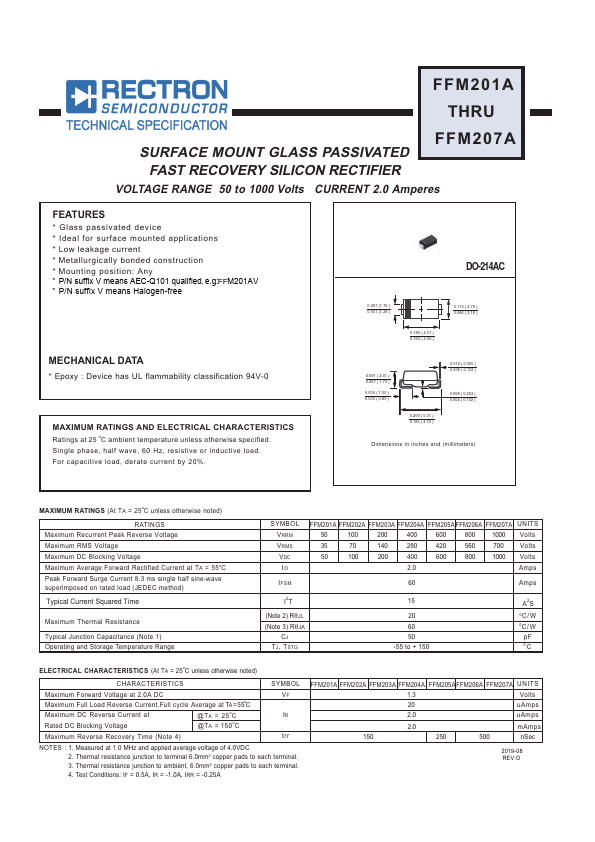

FFM201A THRU FFM207A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY SILICON RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes .

FFM206A Features

* Glass passivated device

FFM206A Applications

* Low leakage current
* Metallurgically bonded construction
* Mounting position: Any
* P/N suffix V means AEC-Q101 qualified, e. g:FFM201AV
* P/N suffix V means Halogen-free MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0 MAXIMUM RATINGS AND ELECTRICA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FFM206A, FFM201A. Please refer to the document for exact specifications by model.

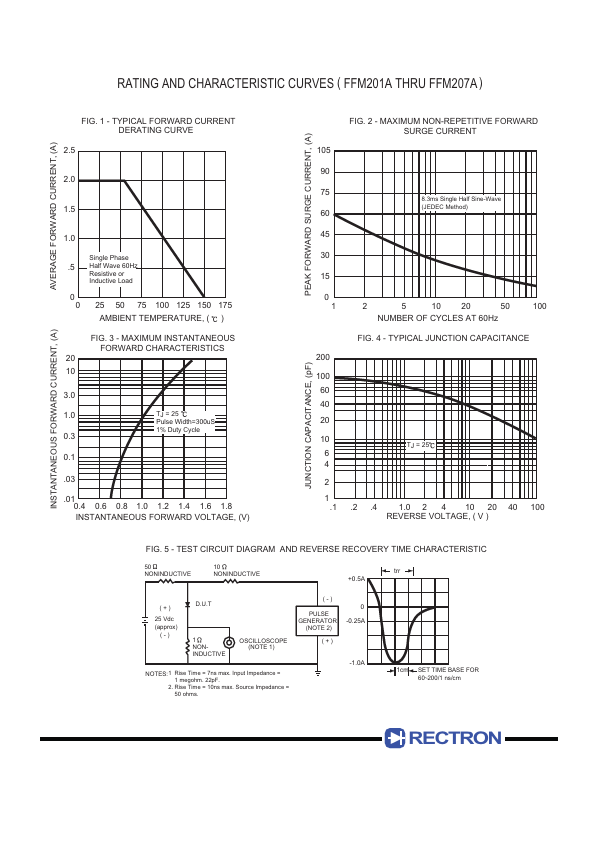

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FFM206A, FFM201A
Manufacturer
Rectron
File Size
244.35 KB
Datasheet
FFM201A-Rectron.pdf
Description
FAST RECOVERY SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: FFM206A, FFM201A.
Please refer to the document for exact specifications by model.
