FFM201 FAST RECOVERY SILICON RECTIFIER

FFM201 Description

FFM201 THRU FFM207 SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY SILICON RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes .

FFM201 Features

* Glass passivated device

FFM201 Applications

* Low leakage current
* Metallurgically bonded construction
* Mounting position: Any
* Weight: 0.098 gram
* P/N suffix V means AEC-Q101 qualified, e. g:FFM201V
* P/N suffix V means Halogen-free MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0 MAXIM

📥 Download Datasheet

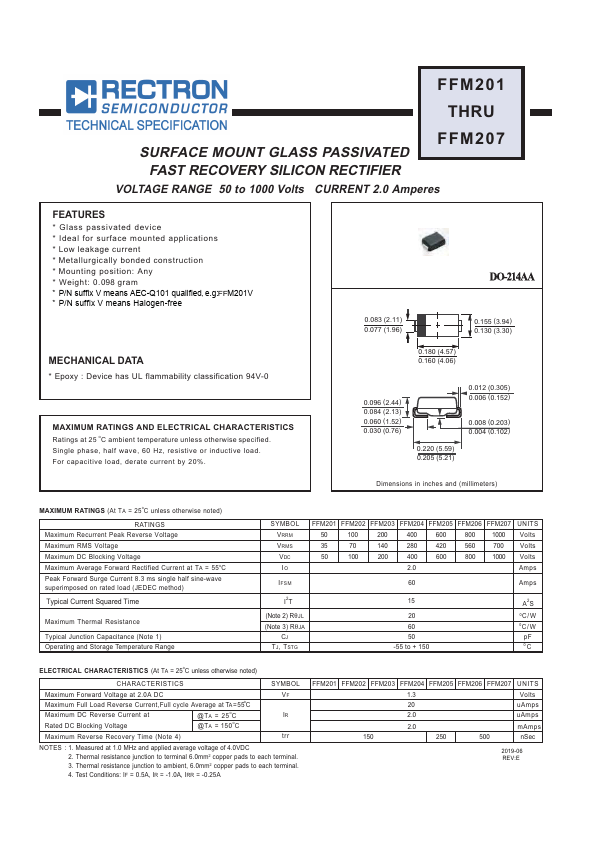

Preview of FFM201 PDF

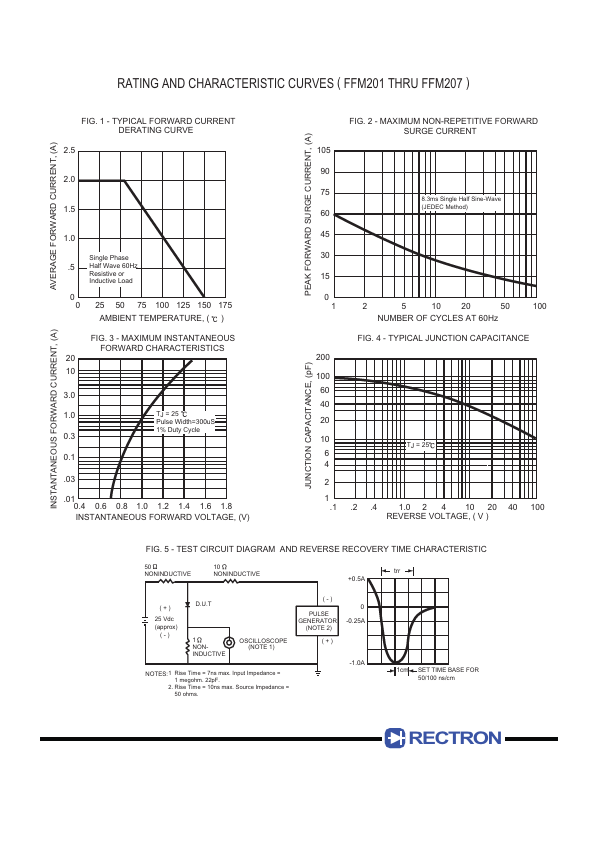

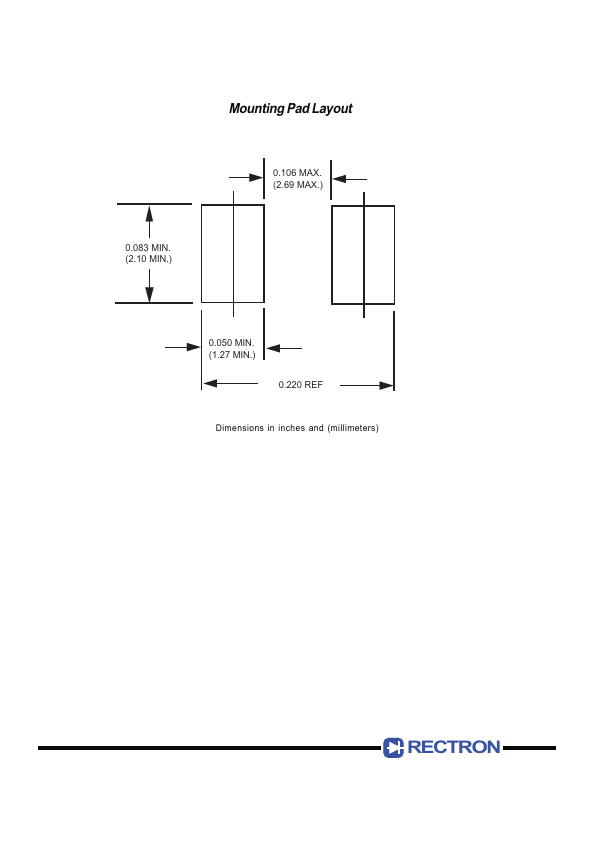

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FFM201
Manufacturer
Rectron
File Size
194.61 KB
Datasheet
FFM201-Rectron.pdf
Description
FAST RECOVERY SILICON RECTIFIER
